DeMultiplex5
DeMultiplexer block for five output connectors
Library
Modelica/Blocks/Routing
Description
The input connector is split into five output connectors.Note, that the dimensions of the output connector signals have to beexplicitly defined via parameters n1, n2, n3, n4 and n5.

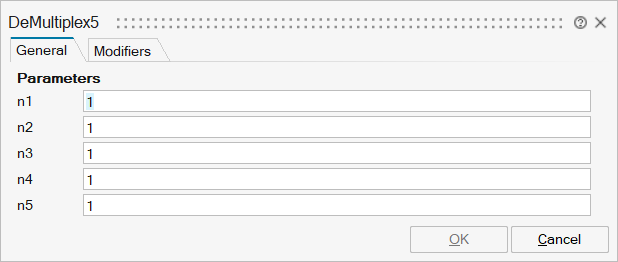

Parameters
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo_n1 | n1 | Dimension of output signal connector 1 | Scalar | |
mo_n2 | n2 | Dimension of output signal connector 2 | Scalar | |
mo_n3 | n3 | Dimension of output signal connector 3 | Scalar | |
mo_n4 | n4 | Dimension of output signal connector 4 | Scalar | |
mo_n5 | n5 | Dimension of output signal connector 5 | Scalar |
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo__nmodifiers | Number of Modifiers | Specifies the number of modifiers | Number | |
mo__modifiers | Modifiers | Add new modifier | Structure | |
mo__modifiers/varname | Variable name | Cell of strings | ||
mo__modifiers/attribute | Attribute | Cell of strings | 'start' | |
mo__modifiers/value | Value |
Ports
| Name | Type | Description | IO Type | Number |
|---|---|---|---|---|
u | implicit | Connector of Real input signals | input | 1 |
y1 | implicit | Connector of Real output signals 1 | output | 1 |
y2 | implicit | Connector of Real output signals 2 | output | 2 |
y3 | implicit | Connector of Real output signals 3 | output | 3 |
y4 | implicit | Connector of Real output signals 4 | output | 4 |
y5 | implicit | Connector of Real output signals 5 | output | 5 |
