TLine1
Lossless transmission line with characteristic impedance Z0 and transmission delay TD
Library
Modelica/Electrical/Analog/Lines
Description
Lossless transmission line with characteristic impedance Z0 and transmission delay TD The lossless transmission line TLine1 is a two Port. Both port branches consist of a resistor with characteristic impedance Z0 and a controlled voltage source that takes into consideration the transmission delay TD. For further details see [Branin1967]. The model parameters can be derived from inductance and capacitance per length (L' resp. C'), i. e. Z0 = sqrt(L'/C') and TD = sqrt(L'*C')*length_of_line. Resistance R' and conductance C' per meter are assumed to be zero.
References: [Branin1967], [Hoefer1985]

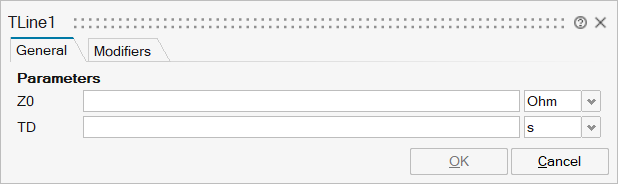

Parameters
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo_Z0 | Z0 | Characteristic impedance | Scalar | |
mo_TD | TD | Transmission delay | Scalar |

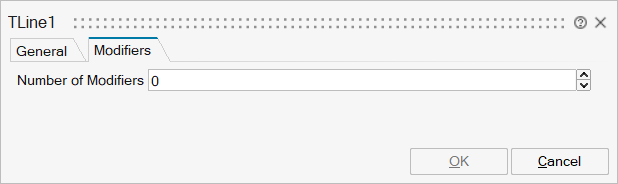

| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo__nmodifiers | Number of Modifiers | Specifies the number of modifiers | Number | |
mo__modifiers | Modifiers | Add new modifier | Structure | |
mo__modifiers/varname | Variable name | Cell of strings | 'v1' | |
mo__modifiers/attribute | Attribute | Cell of strings | 'start' | |
mo__modifiers/value | Value |
Ports
| Name | Type | Description | IO Type | Number |
|---|---|---|---|---|
p1 | implicit | Positive electrical pin of port 1 | input | 1 |
n1 | implicit | Negative electrical pin of port 1 | output | 1 |
p2 | implicit | Positive electrical pin of port 2 | input | 2 |
n2 | implicit | Negative electrical pin of port 2 | output | 2 |
