StackRC

Stack with sensors

StackRC

Library

Modelica/Electrical/Batteries/BatteryStacksWithSensors

This is a stack of Ns x Np transient cellRC[Np=1, Ns=1] (with RC-elements) with measurement, arranged in a matrix.

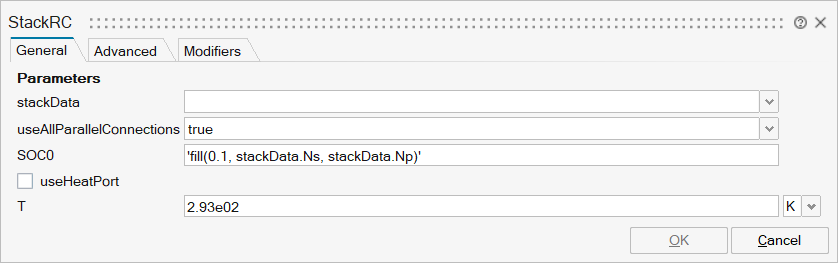

StackRC_0

Name	Label	Description	Data Type	Valid Values
mo_stackData	stackData			FromModelica('Modelica.Electrical.Batteries.BaseClasses.BaseStackData') FromModelica('Modelica.Electrical.Batteries.ParameterRecords.StackData') FromModelica('Modelica.Electrical.Batteries.ParameterRecords.TransientData.StackData')
mo_useAllParallelConnections	useAllParallelConnections	= true, if all parallel connections are used	Scalar	true false
mo_SOC0	SOC0	Initial SOC	Matrix
mo_useHeatPort	useHeatPort	=true, if HeatPort is enabled	Number	0 1
mo_T	T	Fixed device temperature if useHeatPort = false	Scalar

StackRC_1

Name	Label	Description	Data Type	Valid Values
mo_SOCtolerance	SOCtolerance	SOC tolerance for detection of depleted or overcharged cell	Scalar

Name

Label

Description

Data Type

Valid Values

mo_SOCtolerance

SOCtolerance

SOC tolerance for detection of depleted or overcharged cell

Scalar

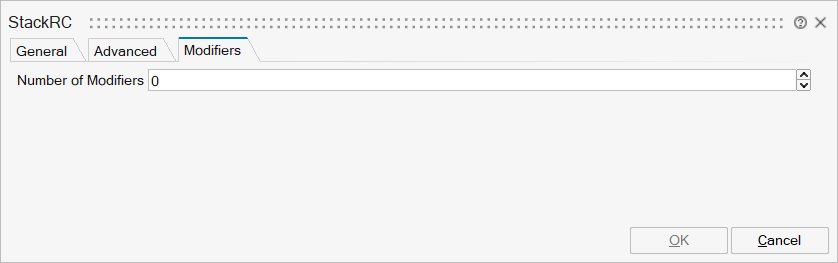

StackRC_2

Name	Label	Description	Data Type	Valid Values
mo__nmodifiers	Number of Modifiers	Specifies the number of modifiers	Number
mo__modifiers	Modifiers	Add new modifier	Structure
mo__modifiers/varname	Variable name		Cell of strings	'displaySOC' 'v' 'i' 'power' 'SOC'
mo__modifiers/attribute	Attribute		Cell of strings	'start' 'fixed'
mo__modifiers/value	Value

Name	Type	Description	IO Type	Number
p	implicit	Positive electrical pin	input	1
n	implicit	Negative electrical pin	output	1
stackBus	implicit	Stack bus	input	2
batteryBus	implicit	Battery bus (average / sum over all cells)	input	3
Port 5	implicit	Optional port to which dissipated losses are transported in form of heat	input	mo_useHeatPort
