BusTranscription
Transcribe bus signals
Library
Modelica/Electrical/Batteries/Utilities
Description
Transfers the information from the stackBus to the stackBusArrays.

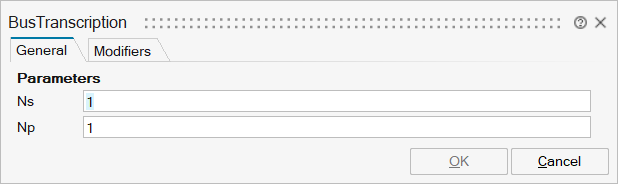

Parameters
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo_Ns | Ns | Number of series connected cells | Scalar | |
mo_Np | Np | Number of parallel connected cells | Scalar |

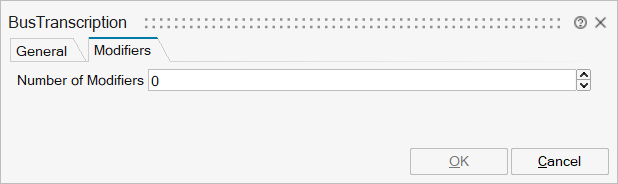

| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo__nmodifiers | Number of Modifiers | Specifies the number of modifiers | Number | |
mo__modifiers | Modifiers | Add new modifier | Structure | |
mo__modifiers/varname | Variable name | Cell of strings | ||
mo__modifiers/attribute | Attribute | Cell of strings | 'start' | |
mo__modifiers/value | Value |
Ports
| Name | Type | Description | IO Type | Number |
|---|---|---|---|---|
stackBus | implicit | Stack bus | input | 1 |
stackBusArrays | implicit | Stack bus with signal arrays | input | 2 |
