PulseSeries
Series of pulses
Library
Modelica/Electrical/Batteries/Utilities
Description
Starting at time = startTime, first a series of n1 pulses of amplitude1 with length T1 and pause after each pulse Tp1 is issued.
Then, after a pause Tp, a series of n2 pulses of amplitude2 with length T2 and pause after each pulse Tp2 is issued.
Parameters

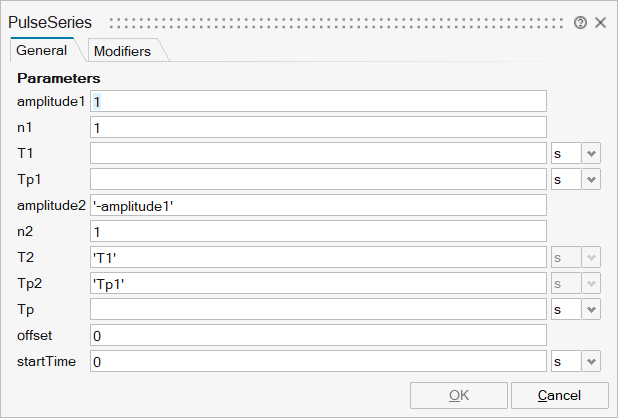

| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo_amplitude1 | amplitude1 | Amplitude of 1st pulse series | Scalar | |
mo_n1 | n1 | Number of pulses of 1st series | Scalar | |
mo_T1 | T1 | Length of pulses of 1st series | Scalar | |
mo_Tp1 | Tp1 | Pause between pulses of 1st series | Scalar | |
mo_amplitude2 | amplitude2 | Amplitude of 2nd pulse series | Scalar | |
mo_n2 | n2 | Number of pulses of 2nd series | Scalar | |
mo_T2 | T2 | Length of pulses of 2nd series | Scalar | |
mo_Tp2 | Tp2 | Pause between pulses of 1st series | Scalar | |
mo_Tp | Tp | Pause between the two series | Scalar | |
mo_offset | offset | Offset of output signal y | Scalar | |
mo_startTime | startTime | Output y = offset for time < startTime | Scalar | |
mo_Tstart1 | Tstart1 | Vector | ||
mo_Tstart2 | Tstart2 | Vector |

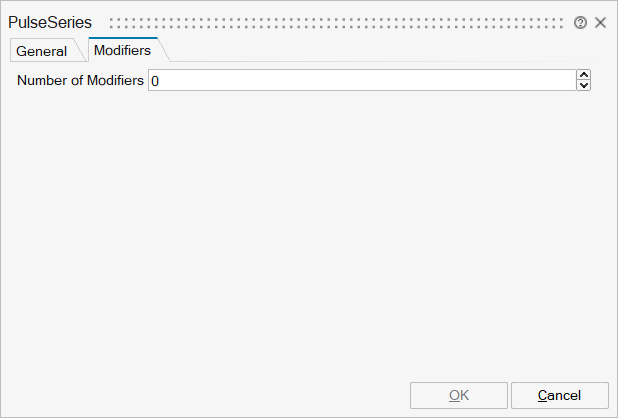

| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo__nmodifiers | Number of Modifiers | Specifies the number of modifiers | Number | |
mo__modifiers | Modifiers | Add new modifier | Structure | |
mo__modifiers/varname | Variable name | Cell of strings | 'on1' | |
mo__modifiers/attribute | Attribute | Cell of strings | 'start' | |
mo__modifiers/value | Value |
Ports
| Name | Type | Description | IO Type | Number |
|---|---|---|---|---|
y | implicit | Connector of Real output signal | output | 1 |
