BufGate
BufGate with 1 input value, composed by Not and sensitive inertial delay
Library
Modelica/Electrical/Digital/Gates
Description
The BufGate model has a single valued input, and a single valued output. It consists of an InertialDelaySensitive only. Its parameters are the delay parameters (rise and fall inertial delay time, and initial value).

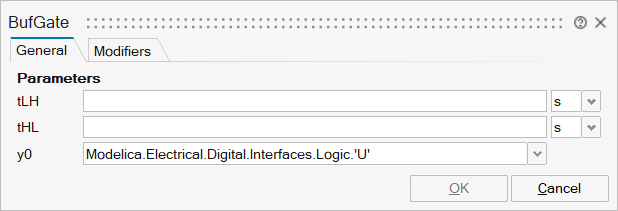

Parameters
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo_tLH | tLH | Rise inertial delay | Scalar | |
mo_tHL | tHL | Fall inertial delay | Scalar | |
mo_y0 | y0 | Initial value of output | Structure | |
mo_y0/choice1 | Modelica.Electrical.Digital.Interfaces.Logic.'U' | Number | 0 | |
mo_y0/choice2 | Modelica.Electrical.Digital.Interfaces.Logic.'X' | Number | 0 | |
mo_y0/choice3 | Modelica.Electrical.Digital.Interfaces.Logic.'0' | Number | 0 | |
mo_y0/choice4 | Modelica.Electrical.Digital.Interfaces.Logic.'1' | Number | 0 | |
mo_y0/choice5 | Modelica.Electrical.Digital.Interfaces.Logic.'Z' | Number | 0 | |
mo_y0/choice6 | Modelica.Electrical.Digital.Interfaces.Logic.'W' | Number | 0 | |
mo_y0/choice7 | Modelica.Electrical.Digital.Interfaces.Logic.'L' | Number | 0 | |
mo_y0/choice8 | Modelica.Electrical.Digital.Interfaces.Logic.'H' | Number | 0 | |
mo_y0/choice9 | Modelica.Electrical.Digital.Interfaces.Logic.'-' | Number | 0 |

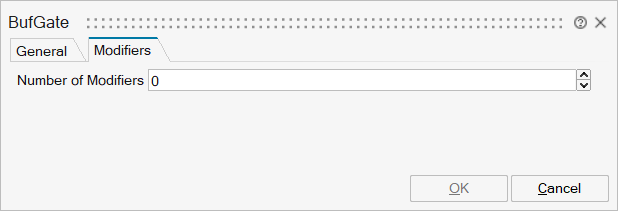

| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo__nmodifiers | Number of Modifiers | Specifies the number of modifiers | Number | |
mo__modifiers | Modifiers | Add new modifier | Structure | |
mo__modifiers/varname | Variable name | Cell of strings | ||
mo__modifiers/attribute | Attribute | Cell of strings | 'start' | |
mo__modifiers/value | Value |
Ports
| Name | Type | Description | IO Type | Number |
|---|---|---|---|---|
x | implicit | Connector of Digital input signal | input | 1 |
y | implicit | Connector of Digital output signal | output | 1 |
