DcBrakeSettings
Setting for DC current braking
Library
Modelica/Electrical/Machines/Utilities
Description
Lets the user choose the layout, and determines the necessary DC current for DC current braking of an induction machine.
The icon shows the four layout variants.Phases with half the current are depicted with half the line thickness,phases with zero current are depicted with dashed line.

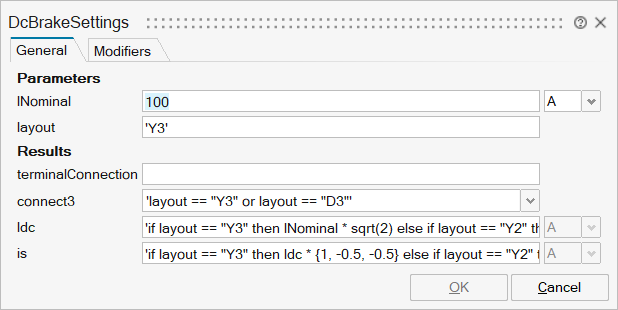

Parameters
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo_INominal | INominal | Nominal RMS current per phase | Scalar | |
mo_layout | layout | Braking connection layout | String | |
mo_terminalConnection | terminalConnection | Terminal connection | String | |
mo_connect3 | connect3 | Connect 3rd terminal | Scalar | true |
mo_Idc | Idc | DC braking current | Scalar | |
mo_is | is | Phase currents | Vector of size 3 |

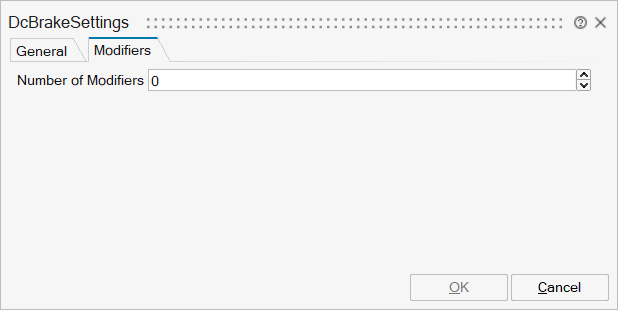

| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo__nmodifiers | Number of Modifiers | Specifies the number of modifiers | Number | |
mo__modifiers | Modifiers | Add new modifier | Structure | |
mo__modifiers/varname | Variable name | Cell of strings | ||
mo__modifiers/attribute | Attribute | Cell of strings | 'start' | |
mo__modifiers/value | Value |
