MultiDelta
Delta (polygon) connection of polyphase systems consisting of multiple base systems
Library
Modelica/Electrical/Polyphase/Basic
Description
Delta (polygon) connection of a polyphase circuit consisting of multiple base systems (seepolyphase guidelines).
Note
If kPolygon<1 or kPolygon>(mBasic - 1)/2, kPolygon is replaced by the value 1 without further warning.
In case of m=2, kPolygon=1 is the only valid choice.
See also

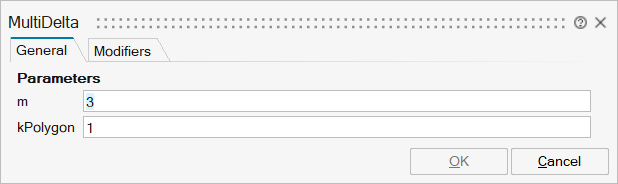

Parameters
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo_m | m | Number of phases | Scalar | |
mo_kPolygon | kPolygon | Alternative of polygon | Scalar | |
mo_mSystems | mSystems | Number of base systems | Scalar | |
mo_mBasic | mBasic | Phase number of base systems | Scalar | |
mo_kP | kP | Scalar |

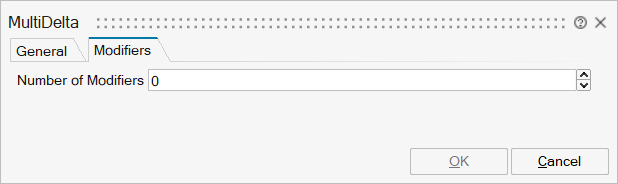

| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo__nmodifiers | Number of Modifiers | Specifies the number of modifiers | Number | |
mo__modifiers | Modifiers | Add new modifier | Structure | |
mo__modifiers/varname | Variable name | Cell of strings | ||
mo__modifiers/attribute | Attribute | Cell of strings | 'start' | |
mo__modifiers/value | Value |
Ports
| Name | Type | Description | IO Type | Number |
|---|---|---|---|---|
plug_p | implicit | input | 1 | |
plug_n | implicit | output | 1 |
