SplitToSubsystems
Split m phases to subsystems
Library
Modelica/Electrical/Polyphase/Basic
Description
Splits the m phases in plug_p into subsystems, i.e., mSystems plugs with mBasic pins according tophase orientation described in the users guide.
Parameters

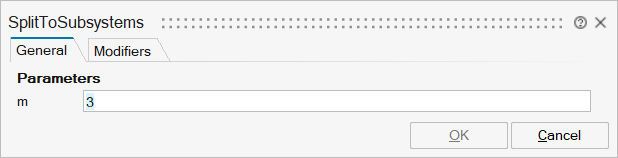

| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo_m | m | Number of phases | Scalar | |
mo_mSystems | mSystems | Number of base systems | Scalar | |
mo_mBasic | mBasic | Phase number of base systems | Scalar |

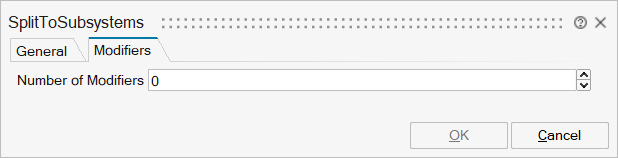

| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo__nmodifiers | Number of Modifiers | Specifies the number of modifiers | Number | |
mo__modifiers | Modifiers | Add new modifier | Structure | |
mo__modifiers/varname | Variable name | Cell of strings | ||
mo__modifiers/attribute | Attribute | Cell of strings | 'start' | |
mo__modifiers/value | Value |
Ports
| Name | Type | Description | IO Type | Number |
|---|---|---|---|---|
plug_p | implicit | Positive polyphase electrical plug with m pins | input | 1 |
plugs_n | implicit | mSystems negative polyphase electrical plugs with mBasic pins each | output | 1 |
