Find and Isolate Specific Geometry Types

When performing cleanup or defining simulation parameters, it can be helpful to first find and isolate certain types of geometry. This will give you a better idea of the areas in the model you need to focus on.

From the Assembly ribbon, click the Find tool.

Figure 1.

The Find tool guide bar opens.

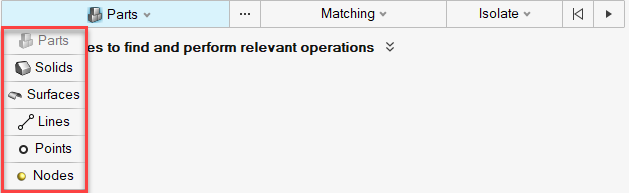

Select a geometry type from the first guide bar selector.

Figure 2.
Optional: Select specific entities in the modeling window.
If entities are selected, the tool acts upon your selection. If no selection made, it acts upon all displayed entities.

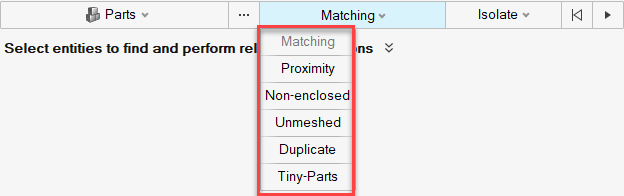

Filter by geometry types using the second menu on the guide bar.

Figure 3.
If necessary, provide a tolerance value, feature angle, etc., to further filter your selection.
Select what to do with the found geometry using the third menu.
- Isolate
- Select
- Create group
Click to run the tool.

Note: Similar find and isolate functions are also available in the context menus for surfaces, solids, and parts. These can be accessed either in idle mode or within another tool.
