Extrude faces

Extrude faces

To extrude faces:

Step Action
1 Activate the Extrude faces command (see next block)
→ An Extrude faces dialog box is opened.
2

Define the extrusion:

  • choose a transformation
  • enter the number of the successive executions of the transformation
→ New entities are added in the Flux PEEC project according the chosen building option.
→ An Extrude faces dialog box is opened.
3

Go on extrusion:

  • go to step 2

Quit the sequence of extrusion:

  • click on Cancel

Activate the command

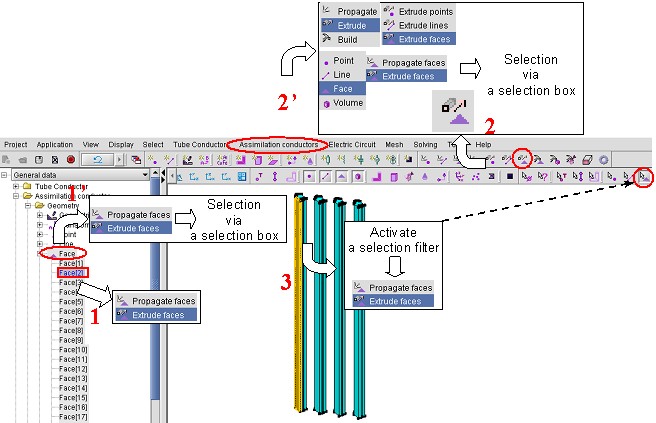

To activate the Extrude faces command, which requires data selection, choose one of the methods presented in the figure below:

Remember: To open a contextual menu, use the right button of the mouse. For multiple selections, keep the Ctrl key pressed.
