Global quantities (electrical component) available in Magnetic Transient

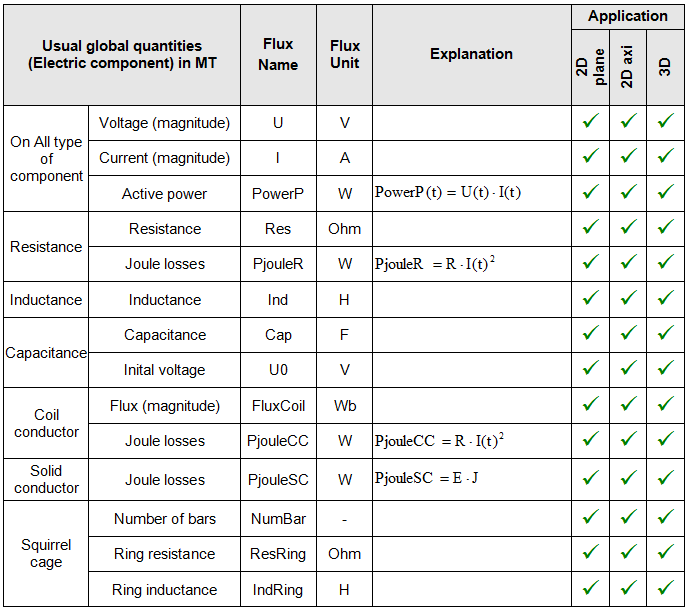

Usual global quantities (Component)

The usual global quantities available for a computation on an electrical component in magnetic transient are presented in the table below.

Global quantities « advanced » (Component)

The global quantities (advanced used) available for a computation on an electrical component in transient magnetic are presented in the table below.


Global quantities “advanced use” (Electric component) in MT	Name and formula
Electrical potential on the terminal of a circuit point CP	V(PC)
Difference of potential between two circuit points CP1 and CP2	V(PC1) – V(PC2)
