Primitive Cone
Introduction
The primitive Cone is a predefined geometric shape that is used to create either a peaked cone or a truncated cone.
The primitive Cone can be created, modified, removed or used in other geometric operations (for example in a Boolean operation).
Structure of the primitive
The primitive Cone is described by :
- A coordinate system for the creation of points (active coordinate system in the list available on the graphic View)
- The coordinates of the point center of the circle that is the large base of the cone, or an existing point
- The dimensions of the Cone primitive (radius of the large base, radius of the small base and height) defined in the active coordinate system
- The appearance of the cone (color and visibility)

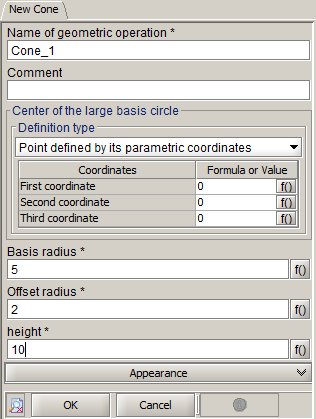

| Dialog box | Illustration |
|---|---|
|
|
Result
The creation of a Cone primitive results in :
- Geometric entities (point, line, face, volume and object)
- A Geometric operation Cone_1. This geometric operation is a specific entity of the modeler that ensures the life cycle of the primitive (creation - modification - removal).
Access
The different ways to access the primitive Cone are:
- By menu:
- By icon:
Creation of a cone
The creation process of a primitive Cone is presented in the table below.
| Stage | Description |
|---|---|
| 1 | Choice of the coordinate system for the primitive creation |
| 2 | Opening the dialog box Primitive Cone |
| 3 |
Choice of the name of the generated geometric operation (by default : Cone_1) |
| 4 |
Definition of the center point of the large basis circle
|
| 5 | Definition of radius of the large basis circle |
| 6 |
Definition of radius of the small basis circle
|
| 7 | Definition of the height |
| 8 |
Choice of color visibility / appearance (by default : visible and turquoise) |
| 9 | Validation by clicking on OK |
| → |
The following entities are created in the tree :
|
