Post processing requires the model
used for analyzing the squeak and rattle phenomena and the solver deck
(.FEM) exported from the pre-processing module.
This solver deck
is used throughout post-processing for creation of contour plots.
From the SnRPost ribbon, select the Risk
Assessment tool.
Figure 1.

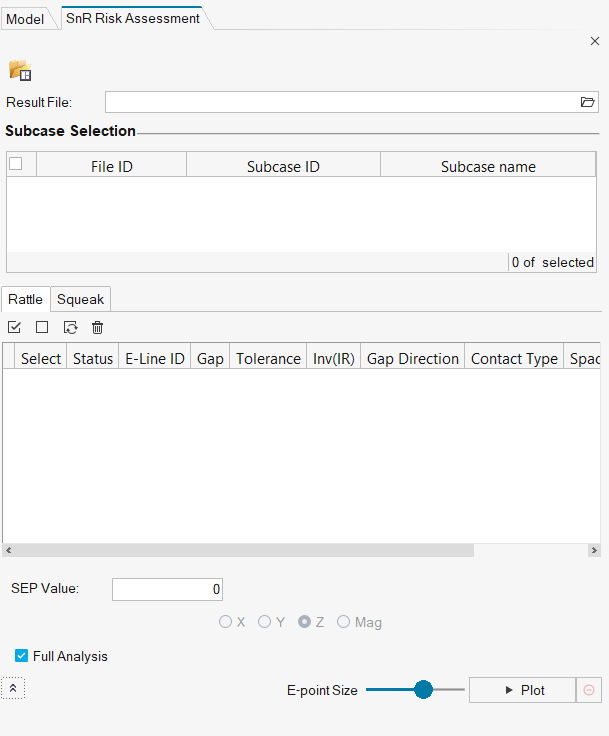

The SnR Risk Assessment Browser opens.Figure 2.
Use the SnR Risk Assessment Browser
to load files and post process results.
