SEA Junctions

A SEA junction is an energy flow path between two or more SEA subsystems corresponding to a single degree of freedom.

A connection defines how model elements are connected. Connections provide paths for vibration and acoustic power flow between elements and establish degrees-of-freedom at the element interfaces. A single connection contains one or more SEA junctions.

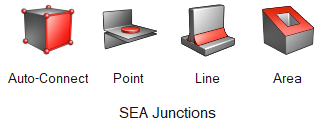

Figure 1. SEA Junctions Ribbon

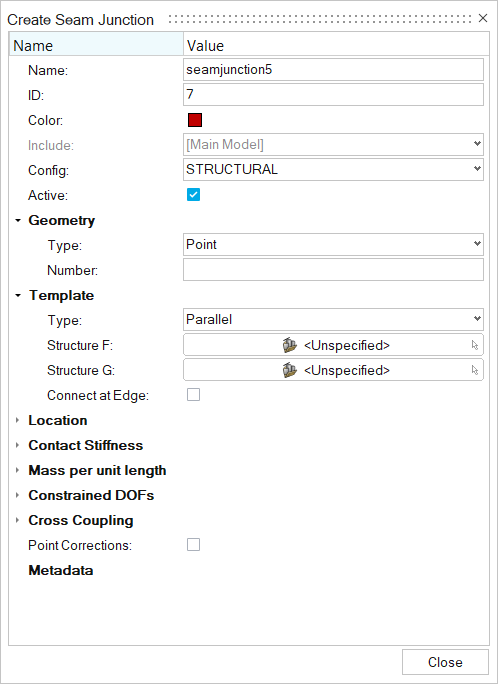

Figure 2. Create Seam Junction


Name
Enter a unique name.
ID
Enter a unique ID.
Connection Type/Config
A predefined type which describes the general form of the connection. Select the connection type from the Config drop-down menu.
There are three types of connections in SEAM:
  • Structural
  • Acoustic
  • Structural-Acoustic
