Groups

  1. From the Model ribbon, Setup tool group, click the Creates Groups tool.
    Figure 1.

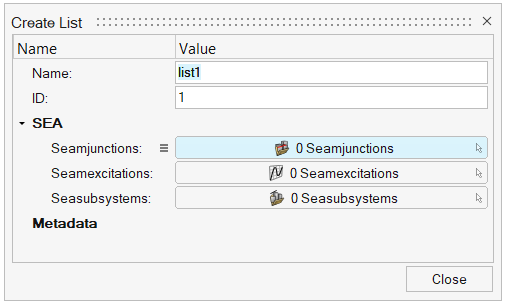

  2. Define the following options:
    Figure 2.


    Name
    Enter a unique name.
    ID
    Enter a unique ID.
    Seam Junctions/Seam Excitations/Sea Subsystems
    Select those that need to be part of the particular group, either graphically or using the advanced entity selector options.
