Word Reports#

Some examples require external input files. Before you start, please follow the link in the Example Scripts section to download the zip file with model and result files.

Example 01 - Creating a DOCX with formatted text#

Code to create document with text#
 1import os
 2import hm
 3import hw
 4
 5import report.hwxdocxtypes as reporting
 6
 7# Initializing session and setting the data directory
 8session=hw.Session()
 9datadir = rf"{hm.altair_home}\demos\report\data"
10
11# Initializing report session
12repsess = reporting.ReportSession()
13
14# Create a Document instance
15doc1 = reporting.Document()
16
17# Create a Text instance
18sample1_text = reporting.Text()
19sample1_text.text = (
20    "The following report is about the structural analysis of this part.\n"
21)
22
23# Create a DocText instance containing the content of Text above
24doctext1 = reporting.DocText(text=sample1_text, parent=doc1, name="DocText1_name")
25# Change the fontsize and setting the italics and bold letters
26doctext1.boldFont = True  # Bold
27doctext1.italicFont = True  # Italics
28doctext1.lineBreak = True  # Adding a linebreak after end
29doctext1.fontSize = 15  # Change font size
30
31# Create a DocText instance containing a new string
32doctext2 = reporting.DocText(
33    text="The isoview of the part is:\n", parent=doc1, name="DocText2_name"
34)
35# Addformated text, images, and changing the alingment
36doctext2.addImage(
37    image=os.path.join(datadir, "isoview.png"),
38    lineBreak=True,
39)
40doctext2.addFormatedText(
41    text="The element coordinate system is:",
42    font_color=[255, 0, 0],
43    underline=True,
44    line_break=True,
45)
46doctext2.addImage(
47    image=os.path.join(datadir, "element_coordinate_system.png"),
48    lineBreak=True,
49)
50# Align text in 'center' of document
51doctext2.alignment = "center"
52
53# Export Document to default directory
54doc1.saveDocx(
55    name=f"{doc1.name}.docx",
56    open=True,
57)
../../_images/image_doctext.png

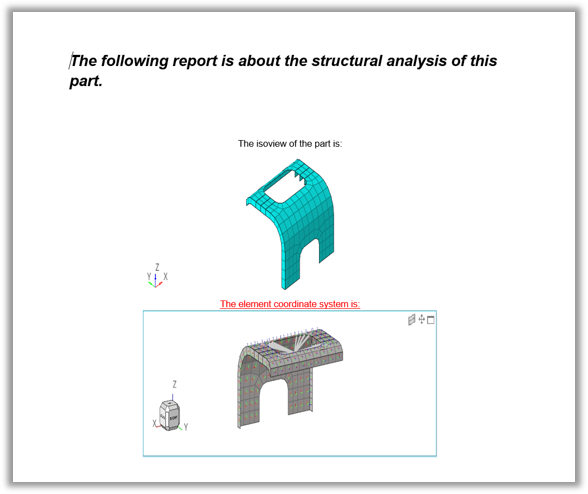

Figure 1. Text inside the document

Example 02 - Creating a DOCX with Images#

Code to create document with images#
 1import os
 2import hm
 3import hw
 4
 5import report.hwxdocxtypes as reporting
 6
 7# Initialize session and setting the data directory
 8session=hw.Session()
 9datadir = rf"{hm.altair_home}\demos\report\data"
10
11# Create a Document instance
12doc2 = reporting.Document()
13# Create an Image instance
14sample1_image = reporting.Image()
15sample1_image.path = os.path.join(datadir, "frontview.png")
16sample1_image.caption = "Front view of the part."
17
18# Create a DocImage instance containing the content of Image above
19docimage1 = reporting.DocImage(image=sample1_image, parent=doc2, name="DocImage1_name")
20
21# Creating a DocImage instance containing a new image
22docimage2 = reporting.DocImage(
23    image=os.path.join(datadir, "leftsideview.png"), parent=doc2, name="DocImage2_name"
24)
25# Add caption
26docimage2.caption = "Left side view of the part."
27
28# Export Document to default directory
29doc2.saveDocx(
30    name=f"{doc2.name}.docx",
31    open=True,
32)
../../_images/image_docimage.png

Figure 2. Images inside the document

Example 03 - Creating a DOCX with Tables#

Code to create document with tables#
 1import os
 2import hm
 3import hw
 4
 5import report.hwxdocxtypes as reporting
 6
 7# Initialize session and setting the data directory
 8session = hw.Session()
 9datadir = rf"{hm.altair_home}\demos\report\data"
10
11# Create a Document instance
12doc3 = reporting.Document()
13
14# Create a Table
15tab1 = reporting.Table("Table1")
16tab1.csvFile = os.path.join(datadir, "model_statistics.csv")
17tab1.caption = "Entire Model Statistics Summary."
18
19# Create a DocTable instance containing the content of Table above
20doctable1 = reporting.DocTable(table=tab1, parent=doc3, name="DocTable1_name")
21
22# Create a DocTable instance containing a new table
23doctable2 = reporting.DocTable(
24    table=os.path.join(datadir, "model_mass.csv"), parent=doc3, name="DocTable2_name"
25)
26doctable2.caption = "Model Mass Statistics Summary."
27
28# Export Document to default directory and set template
29doc3.template = rf"{hm.altair_home}/mv/scripts/tcl/report/templates/wordTemplate.docx"
30doc3.saveDocx(
31    name=f"{doc3.name}.docx",
32    open=True,
33)
../../_images/image_doctable.png

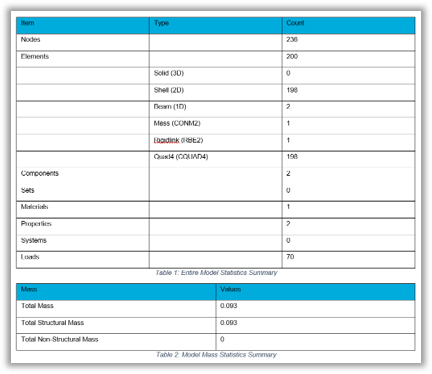

Figure 3. Tables inside the document

Example 04 - Create a DOCX with multiple chapters#

Code to create chapters#
 1"""
 2...
 3By using the instances from the 3 previous examples in serial execution from 1 to 3
 4"""
 5
 6doc4 = reporting.Document()
 7
 8# Create Chapters
 9chap1 = reporting.Chapter(name="Introduction", parent=doc4)
10
11chap2 = reporting.Chapter(name="FrontView", parent=doc4)
12
13chap3 = reporting.Chapter(name="Model Summary", parent=doc4)
14
15chap31 = reporting.Chapter(name="Model Summary Table", parent=chap3)
16
17chap32 = reporting.Chapter(name="Model Mass Table", parent=chap3)
18
19# Moving content to chapters using parent attribute
20print(doctext1.parent)  # Current parent of DocText 1
21doctext1.parent = chap1
22docimage1.parent = chap2
23doctable1.parent = chap31
24doctable2.parent = chap32
25
26# Export Document to default directory and set template
27doc4.template = rf"{hm.altair_home}/mv/scripts/tcl/report/templates/wordTemplate.docx"
28doc4.saveDocx(
29    name=f"{doc4.name}.docx",
30    open=True,
31)
../../_images/image_chapters.png

Figure 4. Multiple chapters inside the document

Example 05 - Copying & Pasting from one place in the document to another#

Code to copy and paste inside document#
 1"""
 2...
 3By using the instances from the 4 previous examples in serial execution from 1 to 4
 4"""
 5
 6doc5 = reporting.Document()
 7
 8# List of all DocText objects from Chapter "Model Summary"
 9chapt3List=chap3.getChildren(type=[reporting.DocTable], childrenLevel="all")
10
11# Copy & Paste from Chapter "Model Summary" to Chapter "Introduction"
12repsess.paste(chapt3List,chap1)
13
14# Export Document to default directory and set template
15doc5.template = rf"{hm.altair_home}/mv/scripts/tcl/report/templates/wordTemplate.docx"
16doc5.saveDocx(
17    name=f"{doc5.name}.docx",
18    open=True,
19)
../../_images/image_paste.png

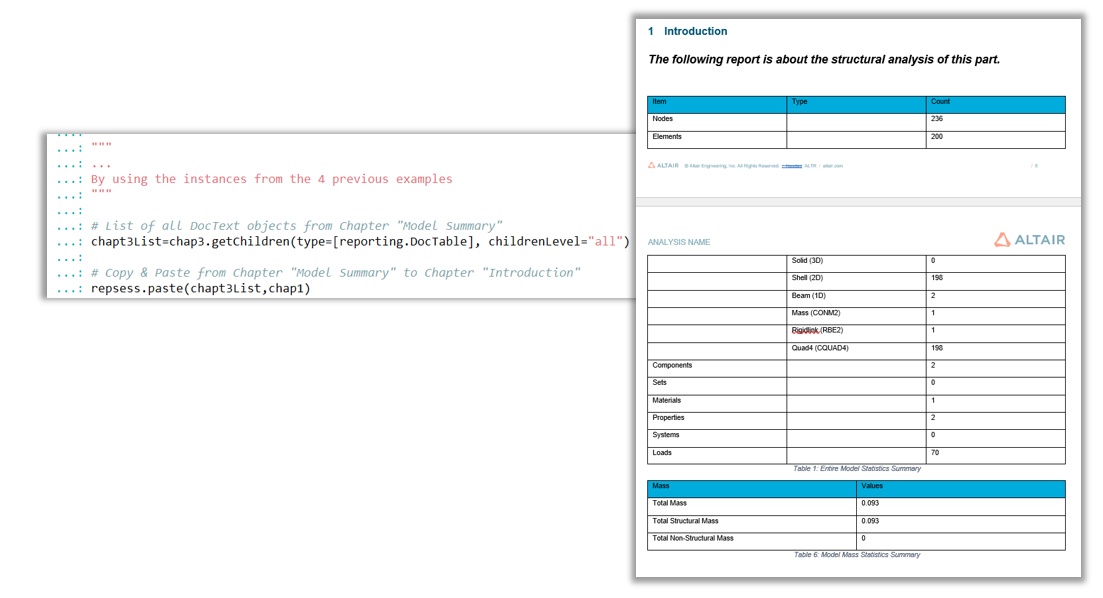

Figure 5. Listing Document classes and copying & pasting content inside the document

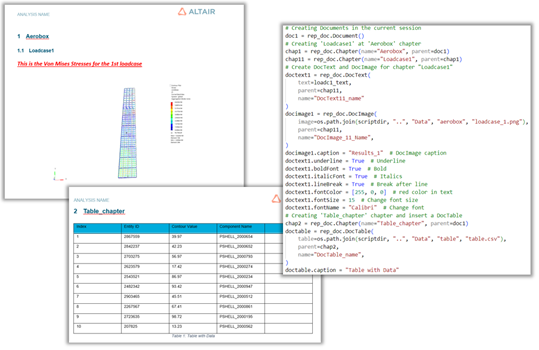

Example 06 - Creating a complete report in a DOCX#

Code to create a complete Docx report#
  1import hw
  2import os
  3import report.hwxdocxtypes as rep_doc
  4
  5
  6# Preleminaries for the demo (loading a file, results, creating some contours and tensor plot and capture them)
  7scriptdir = os.path.dirname(os.path.abspath(__file__))
  8hmFile = os.path.join(scriptdir, "aerobox", "aerobox.fem")
  9resFile = os.path.join(scriptdir, "aerobox", "aerobox-LC1-2.op2")
 10
 11import hm
 12import hm.entities as ent
 13
 14sess = hw.Session()
 15win1 = sess.get(tag=hw.Window, id=1, page=1)
 16win1.type='fepre'
 17
 18model = hm.Model()
 19if not win1.isEmpty():
 20    model.hm_answernext("yes")
 21    model.deletemodel()
 22
 23model.start_batch_import(mode=2)
 24model.feinputwithdata2(
 25    import_reader="#optistruct/optistruct",
 26    filename=hmFile,
 27    overwrite_flag=0,
 28    reserved1=0,
 29    cleanup_tolerance=0,
 30    blanked_component=0,
 31    offset_flag=0,
 32    string_array=[
 33        "OptiStruct ",
 34        " ",
 35        "CREATE_ONE_COMP_ACROSS_INCLUDES ",
 36        "ASSIGNPROP_BYHMCOMMENTS ",
 37        "CREATE_PART_HIERARCHY",
 38        "IMPORT_MATERIAL_METADATA",
 39        "ENGINEERINGENTITIES ",
 40        "ANSA ",
 41        "PATRAN ",
 42        "EXPAND_IDS_FOR_FORMULA_SETS ",
 43        "CONTACTSURF_DISPLAY_SKIP ",
 44        "LOADCOLS_DISPLAY_SKIP ",
 45        "SYSTCOLS_DISPLAY_SKIP ",
 46        "VECTORCOLS_DISPLAY_SKIP ",
 47    ],
 48    scale_factor=1.0,
 49    name_comps_by_layer=0,
 50)
 51model.end_batch_import()
 52loadcolSet = hm.CollectionSet(model)
 53loadcolSet.set(hm.Collection(model, ent.Loadcol))
 54model.hideentitybymark(collection_set=loadcolSet)
 55
 56res = ent.Result(model)
 57res.resultfiles = [f"{resFile}"]
 58res.init = 1
 59
 60model.rotateabout(overridedefault=1, x=756.703568, y=2926.22443, z=1708.34003)
 61model.viewset(
 62    0.992622267,
 63    0.0320712525,
 64    0.116929341,
 65    0,
 66    -0.0183647278,
 67    0.993024857,
 68    -0.116466176,
 69    0,
 70    -0.119848958,
 71    0.113459544,
 72    0.986287564,
 73    0,
 74    74.2850936,
 75    -2768.32299,
 76    1974.16452,
 77    1,
 78    -481.944534,
 79    -1388.37276,
 80    1615.79217,
 81    2099.54578,
 82)
 83model.window(0, 0, 0, 0, 0)
 84
 85plotc1 = ent.PlotcontrolContour(model, name="contour1", datatype="Stress", layer="Z1")
 86plotc1.plot = True
 87capture = hw.CaptureImageTool()
 88capture.type = "png"
 89capture.width = 1200
 90capture.height = 800
 91capture.file = os.path.join(scriptdir, "aerobox", "loadcase_1.png")
 92capture.capture()
 93
 94model.window(function=2, xmin=10, ymin=2, xmax=10, ymax=2)
 95plotten1 = ent.PlotcontrolTensor(model, name="tensor1", datatype="Stress", layer="Z1")
 96plotten1.plot = True
 97plotten1.txx = True
 98plotten1.tyy = True
 99plotten1.tzz = True
100plotten1.txy = True
101plotten1.tyz = True
102plotten1.tzx = True
103
104
105capture = hw.CaptureImageTool()
106capture.type = "png"
107capture.width = 1200
108capture.height = 800
109capture.file = os.path.join(scriptdir, "aerobox", "loadcase_1_tensor.png")
110capture.capture()
111
112
113model.window(0, 0, 0, 0, 0)
114plotten1.plot = False
115model.setsimulationstep(subcase_id=2, simulation_id=2)
116capture = hw.CaptureImageTool()
117capture.type = "png"
118capture.width = 1200
119capture.height = 800
120capture.file = os.path.join(scriptdir, "aerobox", "loadcase_2.png")
121capture.capture()
122
123
124# Creating a report session object if needed
125session = rep_doc.ReportSession()
126
127# Creating Documents in the current session
128doc1 = rep_doc.Document()
129
130# Creating 'Loadcase1' at 'Aerobox' chapter
131chap1 = rep_doc.Chapter(name="Aerobox", parent=doc1)
132chap11 = rep_doc.Chapter(name="Loadcase1", parent=chap1)
133
134
135loadc1_text = rep_doc.Text()
136loadc1_text.text = "This is the Von Mises Stresses for the 1st loadcase\n"
137
138# Create DocText and DocImage for chapter "Loadcase1"
139doctext1 = rep_doc.DocText(text=loadc1_text, parent=chap11, name="DocText11_name")
140docimage1 = rep_doc.DocImage(
141    image=os.path.join(scriptdir, "aerobox", "loadcase_1.png"),
142    parent=chap11,
143    name="DocImage_11_Name",
144)
145docimage1.caption = "Results_1"  # DocImage caption
146doctext1.underline = True  # Underline
147doctext1.boldFont = True  # Bold
148doctext1.italicFont = True  # Italics
149doctext1.lineBreak = True  # Break after line
150doctext1.fontColor = [255, 0, 0]  # red color in text
151doctext1.fontSize = 15  # Change font size
152doctext1.fontName = "Calibri"  # Change font
153
154
155# Create DocText for "Loadcase1" and add nested text and image
156doctext2 = rep_doc.DocText(
157    text="The Von Mises stresses as tensor\n",
158    parent=chap11,
159    name="DocText11_extra_name",
160)
161doctext2.addFormatedText(text="Look at the figure below:", line_break=True)
162doctext2.addImage(
163    image=os.path.join(scriptdir, "aerobox", "loadcase_1_tensor.png"),
164    lineBreak=True,
165)
166doctext2.alignment = "center"  # Align text
167
168
169# Creating 'Loadcase2' at 'Aerobox' chapter
170chap12 = rep_doc.Chapter(name="Loadcase2", parent=chap1)
171loadc2_text = rep_doc.Text()
172loadc2_text.text = "This is the Von Mises Stresses for the 2nd loadcase\n"
173doctext3 = rep_doc.DocText(text=loadc2_text.text, parent=chap12, name="DocText12_name")
174docimage3 = rep_doc.DocImage(
175    image=os.path.join(scriptdir, "aerobox", "loadcase_2.png"),
176    parent=chap12,
177    name="DocImage_12_Name",
178)
179docimage3.caption = "Results_2"
180
181# Creating 'Table_chapter' chapter and insert a DocTable
182chap2 = rep_doc.Chapter(name="Table_chapter", parent=doc1)
183doctable = rep_doc.DocTable(
184    table=os.path.join(
185        rf"{hm.altair_home}\demos\report\data", "model_statistics.csv"
186    ),
187    parent=chap2,
188    name="DocTable_name",
189)
190doctable.caption = "Table with Data"
191
192# Paste all DocImages of 'Aerobox' to 'Table_chapter'
193session.paste(chap1.getChildren(type=[rep_doc.DocImage], childrenLevel="all"), chap2)
194
195# Set a template and export
196doc1.template = rf"{hm.altair_home}/mv/scripts/tcl/report/templates/wordTemplate.docx"
197doc1.saveDocx(
198    os.path.join(scriptdir, "..", "Export", f"{doc1.name}.docx"),
199    open=True,
200    indexpages=True,
201)
../../_images/image_doc_complete.png

Figure 6. Output of a complete example with Report APIs
