Browse to Data Folder and Import Files

  1. Start HyperStudy.
  2. Start a new study in the following ways:
    • From the menu bar, click File > New.
    • On the ribbon, click .
  3. In the Add Study dialog, enter a study name, select a location for the study, and click OK.

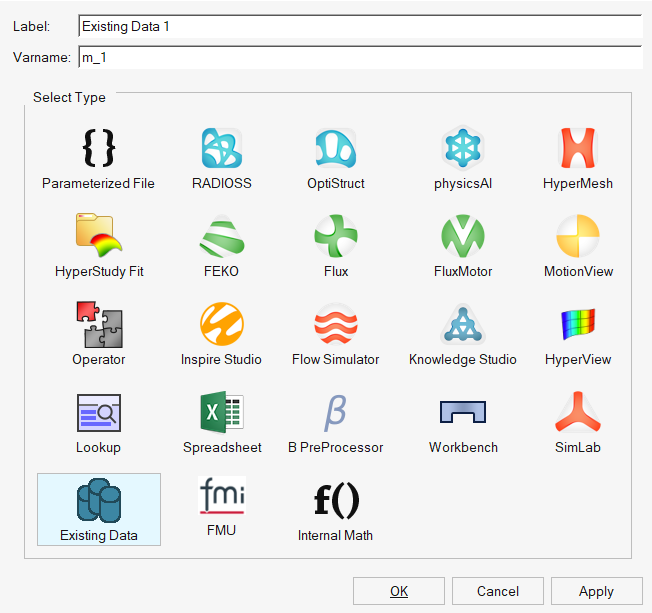

  4. Go to the Define Models step. Click Add Model and add Existing Data model.

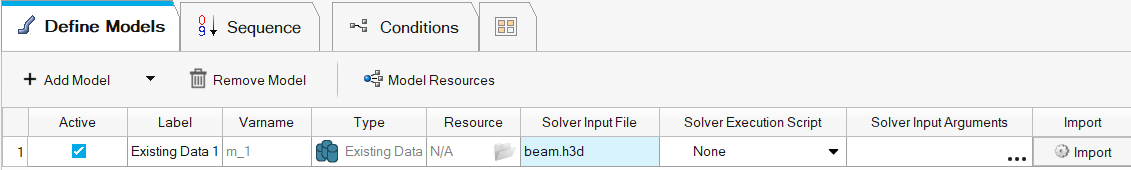

    Figure 1.
  5. Define Solver Input File as beam.h3d and click Import Variables.
    Figure 2.
    Import dialog will appear.
  6. Browse to the Data folder in the study directory and click Search Directory for Files.

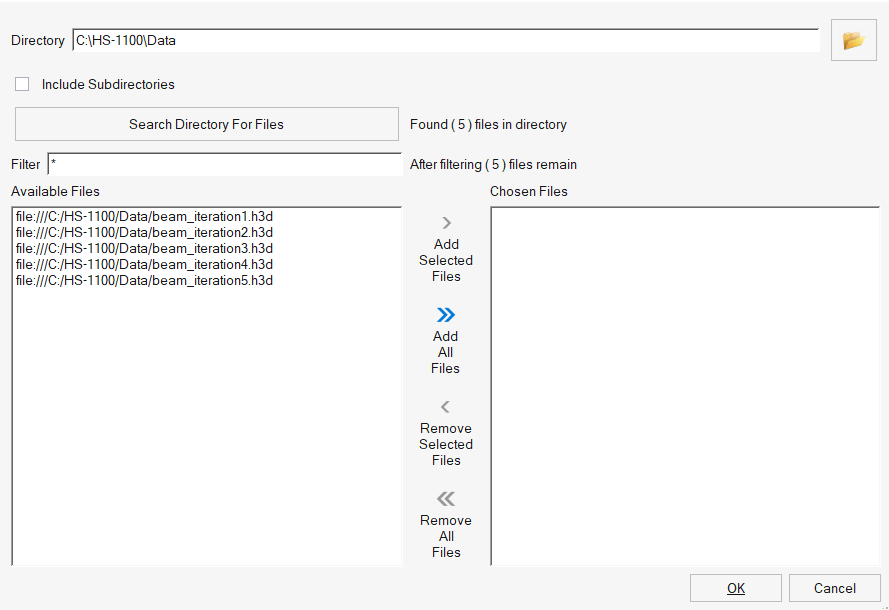

    Figure 3.
    This will enlist all h3d files in the Available Files section.
  7. Select all the available files and click Add All Files to send them to the Chosen Files section. Click OK to close the window.

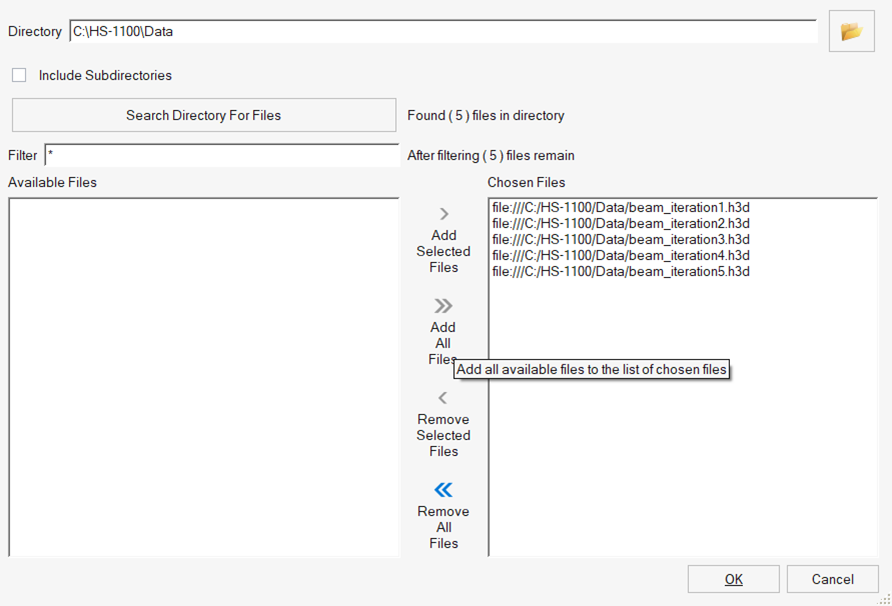

    Figure 4.

    Import step will generate one Input variable and two responses. These are typical used for internal purposes. However, they might be useful to perform reference checks and reports.

    Input Variable: Existing Data Input Uri (list of location of each result file)

    Responses: Existing Data Output Filepath and Existing Data Output Uri

  8. Go to the Test Models step and click Run Definition.
