/SENSOR/SENS
Block Format Keyword Describes the sensors used to activate or deactivate an object according to another sensor.
Format
| (1) | (2) | (3) | (4) | (5) | (6) | (7) | (8) | (9) | (10) |
|---|---|---|---|---|---|---|---|---|---|
| /SENSOR/SENS/sens_ID/unit_ID | |||||||||
| sens_title | |||||||||
| Tdelay | |||||||||
| sens_ID1 | sens_ID2 | ||||||||
Definition
| Field | Contents | SI Unit Example |
|---|---|---|
| sens_ID | Sensor
identifier. (Integer, maximum 10 digits) |
|
| unit_ID | (Optional) Unit identifier. (Integer, maximum 10 digits) |
|
| sens_title | Sensor
title. (Character, maximum 100 characters) |
|
| Tdelay | Time
delay. (Real) |
|
| sens_ID1 | Activation sensor
identifier IS1. (Integer) |
|
| sens_ID2 | Deactivation sensor
identifier IS2. (Integer) |
Comments
- Sensors can be used to activate airbags, imposed forces, pressures, and fixed velocities.
- Sensors can be used to activate or deactivate these elements: brick, quad, shell, truss, beam, spring or 3N Shell with /ACTIV.
- For Sensor types
SENS:
- The sensor is activated after activation of sensor sens_ID1.
- Minimum activation duration is given by Tdelay.
- After Tdelay, sensor is deactivated if sens_ID2 is activated.
- If sens_ID2=0, the sensor
is deactivated after Tdelay.

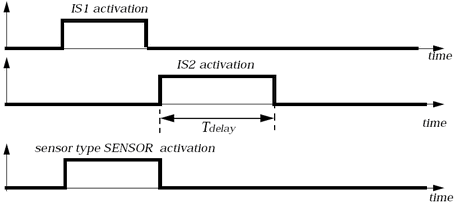

Figure 1.
