Create Configuration Inputs

Use the Configuration tool to create design variables by selecting two or more subsystem configurations.

Note: See Manage Subsystem Configurations for more information about subsystem configurations.

From the Design Explorer ribbon, click the Configuration tool.

Figure 1.

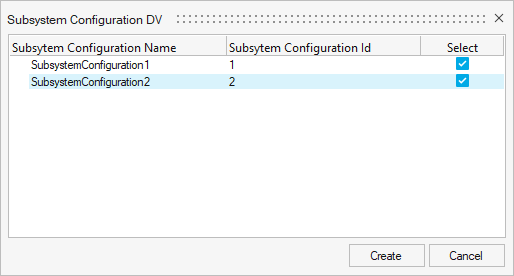

In the Subsystem Configuration DV dialog, select one or more subsystem configuration.

Figure 2.
Click Create.
