Tire Graphics Section

The Tire Graphics check box can be used if you wish to see a deformable tire graphics while post-processing in HyperView.

For CDTire, Fiala and Simcenter MF-Tyre/MF-Swift, the check boxes can be used to switch ON/OFF the deformable graphics in the animation.

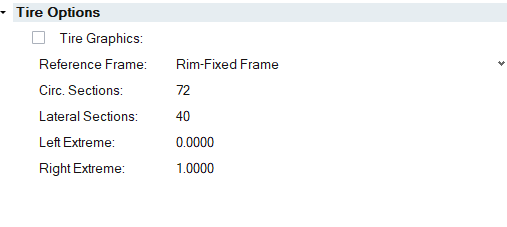

For Cosin FTire, a few additional parameters are presented as inputs:

The following five inputs are needed for creating the tire graphics:


Reference Frame	The frame of reference for the graphics. Options are: Rim-Fixed Frame (Default) Inertial Frame Tydex C Frame This option renders the graphic in the tire force reference marker.
Circumferential Sections	Number of divisions along the circumference.
Lateral Sections	Number of divisions along the tire width.
Left Extreme	Beginning point of graphics on left side of tire. 0 indicates left rim flange.
Right Extreme	Ending point of graphics on right side of tire. 1 indicates right rim flange.
