Examples of Geometry Sections

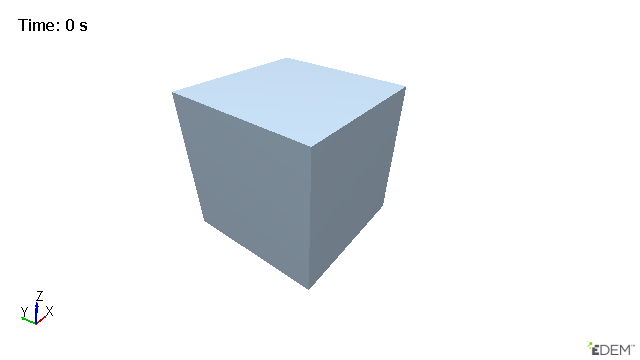

Closed Box


	Length(m)	Position(m)
X	0.5	0.5
Y	0.5	0.5
Z	0.5	0.5

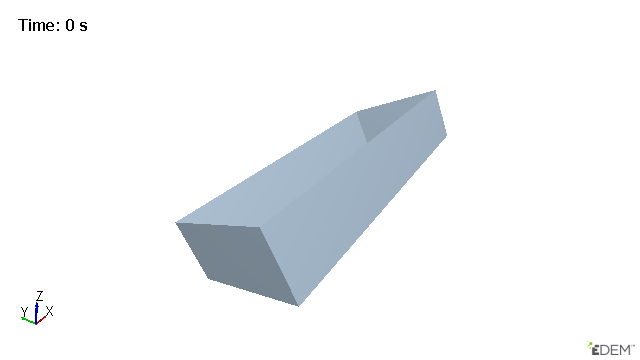

Open Tilted Cuboid


	Length(m)	Position(m)	Rotation(rad)
X	0.5	0.5	-0.5
Y	0.2	0.5	0
Z	0.1	0.5	0

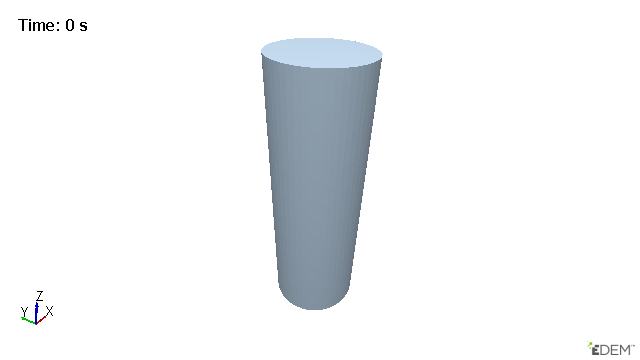

Vertical Cylinder


			Position(m)	Rotation(rad)
Radius Start(mm)	0.1	X	0.5	-0.5
Radius End(mm)	0.1	Y	0.5	0
Length(m)	0.6	Z	0.5	0

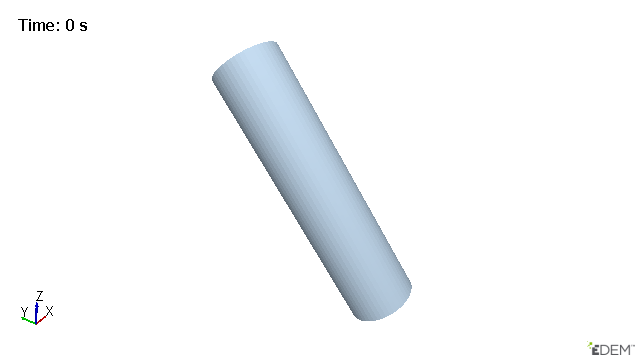

Cylinder Tilted in the y Direction


	Length(m)	Position(m)	Rotation(rad)
X	0.1	0.5	-0.7
Y	0.1	0.75	0
Z	0.78	0.5	0

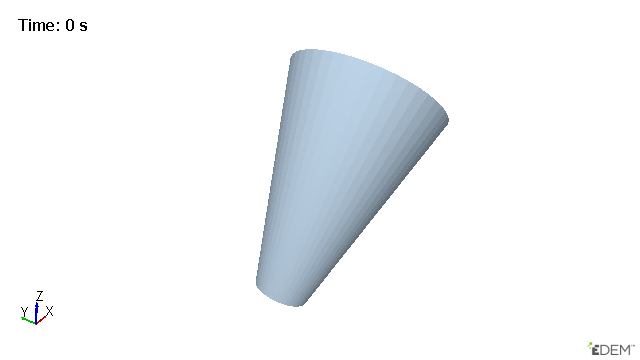

Funnel Tilted in the x Direction


	Length(m)	Position(m)	Rotation(rad)
X	0.1	0.7	0
Y	0.1	0.5	0.7
Z	0.78	0.5	0

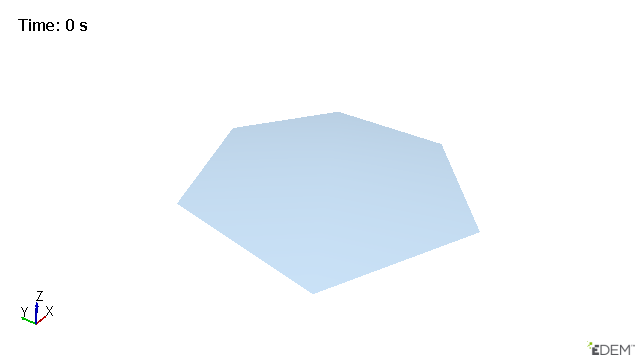

Six-sided Polygon


		Position(m)
Radius	X	0.7
0.5	Y	0.5
	Z	0.5

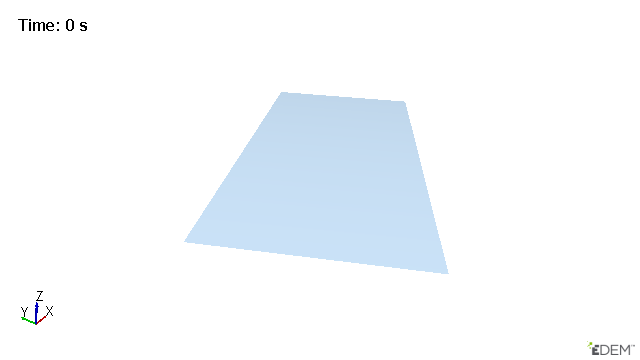

Four-sided Tilted Polygon


Length A		Position(m)	Rotation(rad)
1	X	0.5	0
Length B	Y	0.5	0
1	Z	0.2	0.5

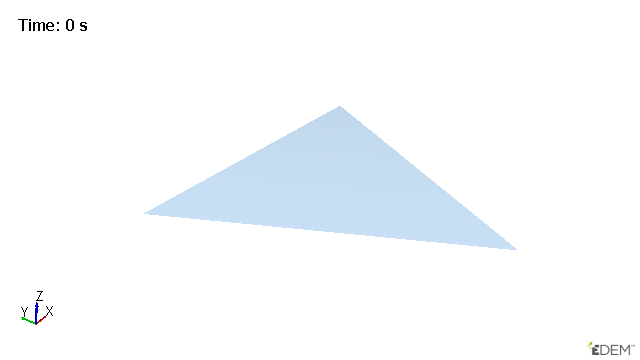

Three-sided Polygon


		Position(m)
Radius	X	0.5
0.5	Y	0.5
	Z	0.3
