Airbag Solution Browser

The Airbag Solution Browser displays all defined folds.

Use the Airbag Solution Browser to review and preview the individual folds, as well as preview the full chain of folds.

Context Menu

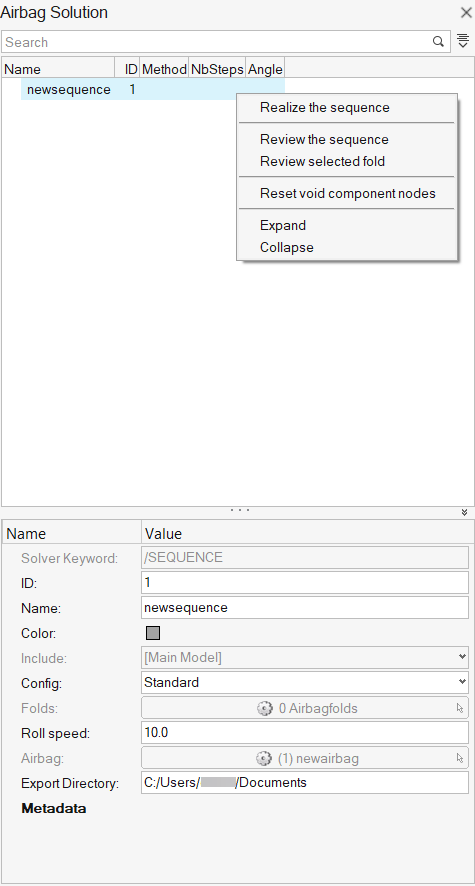

From the Airbag Solution Browser, right-click and select from the following context menu options:

Realize the sequence: Exports the Radioss deck.
Review the sequence: Starts the review context.
Review the selected fold: Starts the review context for the selected fold.
Reset void component folds: Resets the void component nodes to have correct initialization of these nodes before folding.
