Create a Simple Fold

  1. From the Airbag ribbon, click the Simple tool.
    Figure 1.


  2. On the guide bar, click to define parameters.
    • Stopping Angle: Is less than 180 degrees when the fold is partial and 180 degrees when the airbag is folded on itself.
    • Z translation: The value from which the folding line is translated along Z, not in the same plane as the airbag.
  3. On the guide bar, click Side node. The selected node defines the side that the airbag is folded on.
  4. On the guide bar, click Fixed nodes. Select nodes that will not be affected by the fold.
  5. Set advanced selections as necessary by clicking on the guide bar.
  6. On the guide bar, click Preview to preview the fold.
  7. On the guide bar, click Save to save the fold definition. This includes the position of the folding line, the way it is folded, the Z offset, and the stop angle, for example.

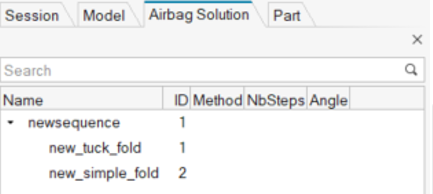

    The simple fold is displayed in the Airbag Solution Browser.
    Figure 2.
