Post Script

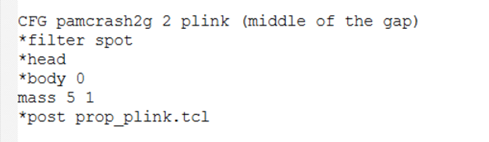

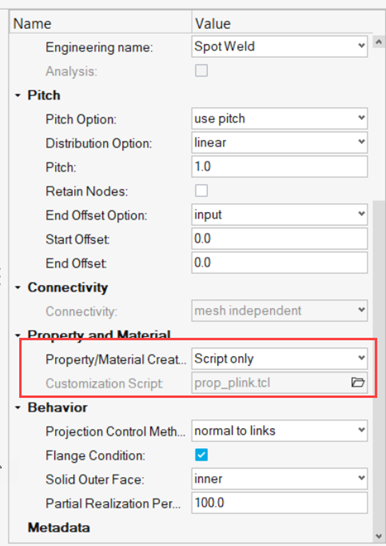

Using a *post limits the connector creation process to just the elements in the configuration file. The *post allows full flexibility for building unique and custom realizations.

# making the extraction easier to read
set dep 0
set ind 1

# for each layer get information...
set num_weld_info [ hm_ce_getnumoffeprojinfo ];
set i 0
while {$i < $num_weld_info} {
    # get the connector id
    set ceID [ hm_getprojceid $i ];

    # Add the connector found elements from the projection
    foreach projSide [list dep ind] {
        # Get the Projection
        set currProj [hm_ce_getfeprojtrip $i [subst $$projSide]]

        # Save the relevant info
        lappend SurfaceElements($ceID) [list $projSide [lindex $currProj 1]]
    }

    incr i
}

# Get the list of connectors to work with
set connectorList [hm_getmark connectors 1]

foreach ceID $connectorList {
    # Find out the Projection Information
    set links_projection_elem [hm_getvalue connectors id=$ceID dataname=realization_links_projection_elem]

    set top_layer [hm_getvalue connectors id=$ceID dataname=realization_top_layer]
    foreach layer $top_layer {
        lappend SurfaceElements($ceID) [lindex $links_projection_elem $layer]
    }

    set bottom_layer [hm_getvalue connectors id=$ceID dataname=realization_bottom_layer]
    foreach layer $bottom_layer {
        lappend SurfaceElements($ceID) [lindex $links_projection_elem $layer]
    }
}

# Set the global Model
import hm
import hw
import hm.entities as ent
model = hm.Model()

# Get the list of connectors to work with
ids_str = globals().get ("connector_ids")
connectorList = [eval(x) for x in ids_str]

#map the realization for each connector
for ceID in connectorList:

    # Get the Object from the ID
    ce = ent.Connector(model,ceID)

    # Find out the Projection Information
    links_projection_elem = ce.realization_links_projection_elem
    top_layer = ce.realization_top_layer
    bottom_layer = ce.realization_bottom_layer
    SurfaceElemnts = []
    for layer in top_layer:
        SurfaceElemnts.insert(layer,links_projection_elem)
    for layer in bottom_layer:
        SurfaceElemnts.insert(layer,links_projection_elem)
