Split with Elements

Use the Split/Stitch tool to split FE geometry surfaces and solids using elements.

Restriction: This tool is not supported for CAD geometry.
  1. From the Topology ribbon, click the Split/Stitch tool.
    Figure 1.


  2. From the guide bar, select Split.
    Tip: You can use the keyboard shortcuts underlined in the function name to select a function.
  3. Select target Surfaces or Solids to split.
  4. Activate the Tool selector on the guide bar and choose to split with Elements.

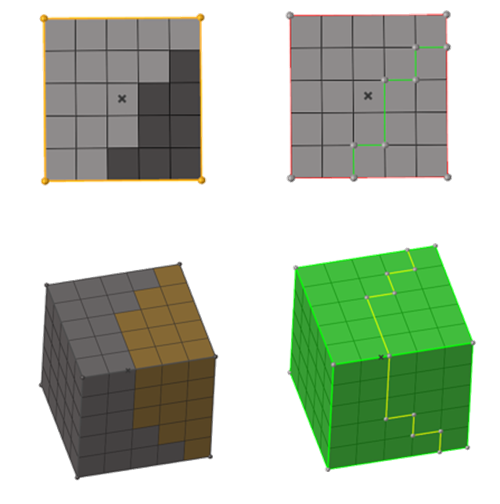

  5. In the modeling window, select the elements (2D or 3D) associated to target surfaces or solids.
    Figure 2.


  6. On the guide bar, complete one of the following:
    • Click to apply and stay in the tool.
    • Click to apply and close the tool.
    • Click to exit the tool without applying.
