Nearby Function

The Nearby function finds entities that are near the selected entities, within a specified distance that can be modified in the Radius or Edge length field, depending on whether the search method is Sphere or Box, respectively.

The default radius/edge length value is 100. Click Entities to display and select from the output entity list.

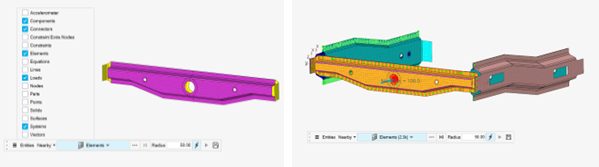

In the example shown in Figure 1, all the FE, along with the connectors, loads, and systems that are within a search radius of 50 of the selected elements are found.
