Quick Search

Quick Search helps you find materials instantly by typing a material name, type, characterisitics, or property. AMDC suggests matching entries and supports property-based filtering using value ranges for more precise results.

You can:

Enter a part of material name, material type, characteristics, or property keywords. For example: DC0, Tensile Strength
Modify the specified search terms to include property value ranges
Edit the specified search text to refine your results

Begin typing a search term such as material name, type, or property in the Quick Search box.
AMDC displays real-time intelligent suggestions as you type.
Choose one of the following:
- Select one of the intelligent suggestions from the list.
- Press Enter.
Figure 1. Quick Search with Suggestions

A list of matching materials is displayed.

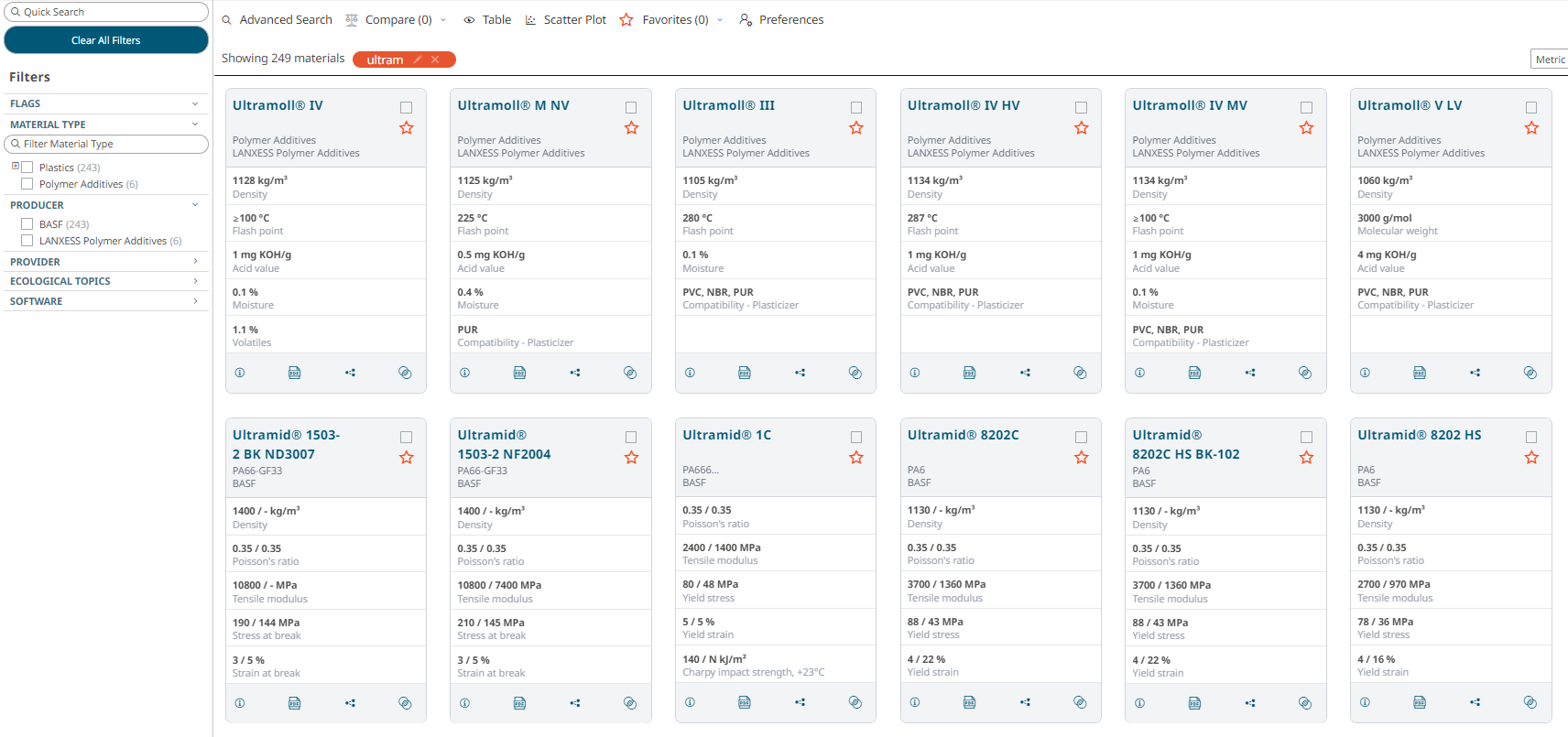

Figure 2. Search Result

Note: To clear the search field, click located to the right of the search term.
You can edit your search term to filter your search result.
1. Click the Edit icon next to the search term.
2. Update your search input and press Enter.

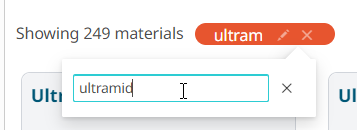

  Figure 3. Edit Search Term

  Search results refresh to reflect the updated input.

  Figure 4. Updated Search Results
Search materials with material type to view a list of grades.
Select one of the intelligent suggestions from the list and press Enter.
Figure 5. Update Search with Material Type

Search results refresh to reflect the updated input.

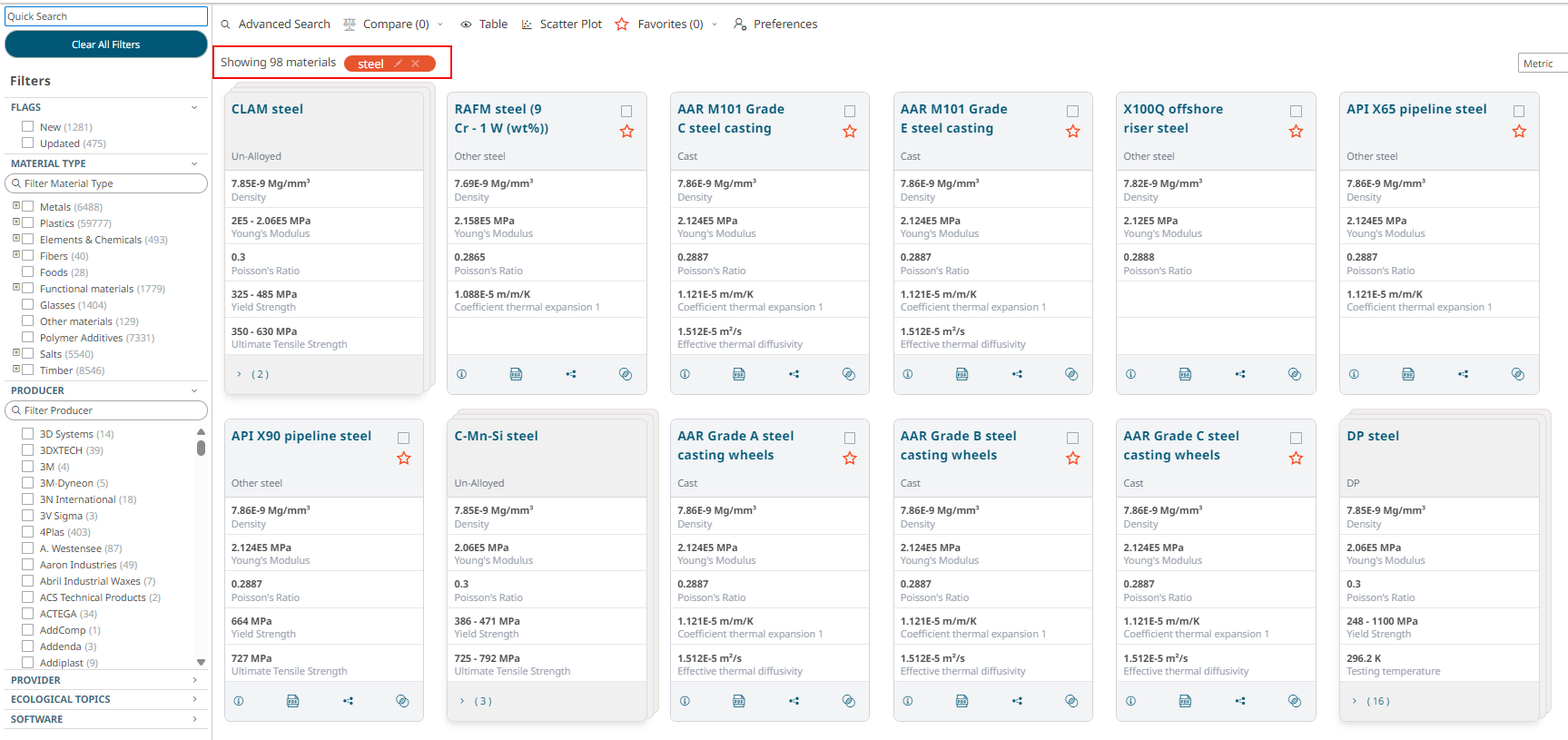

Figure 6. Search Result for Material Type
You can update your material search with physical characteristics.
Select one of the intelligent suggestions from the list and press Enter.

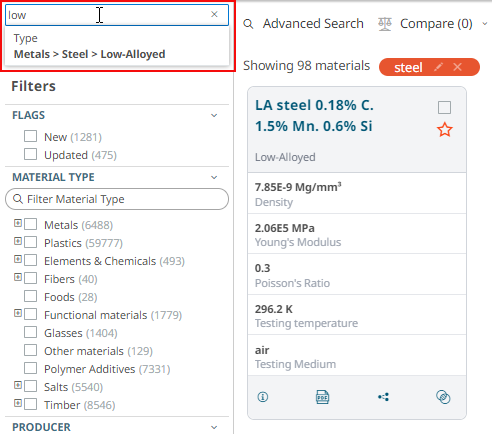

Figure 7. Refine Search with Characteristics

Search results refresh to reflect the updated input.

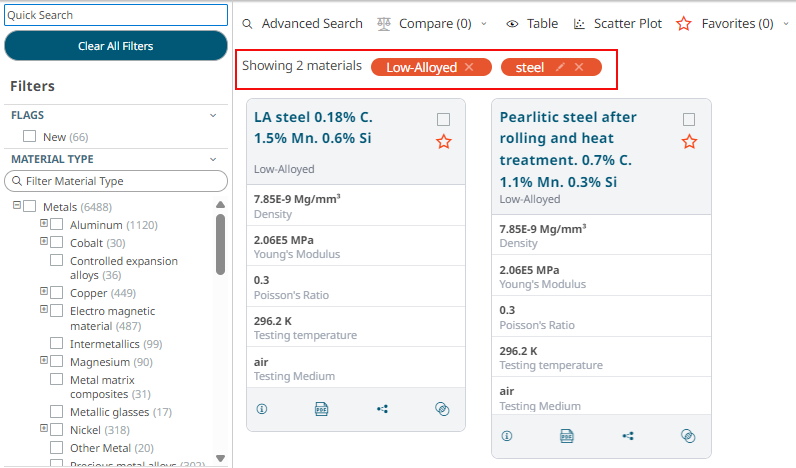

Figure 8. Updated Search Result for Material Type with Characteristics
Enter material property name to find materials containing the specific property and then click Enter.
A list of matching materials is displayed.

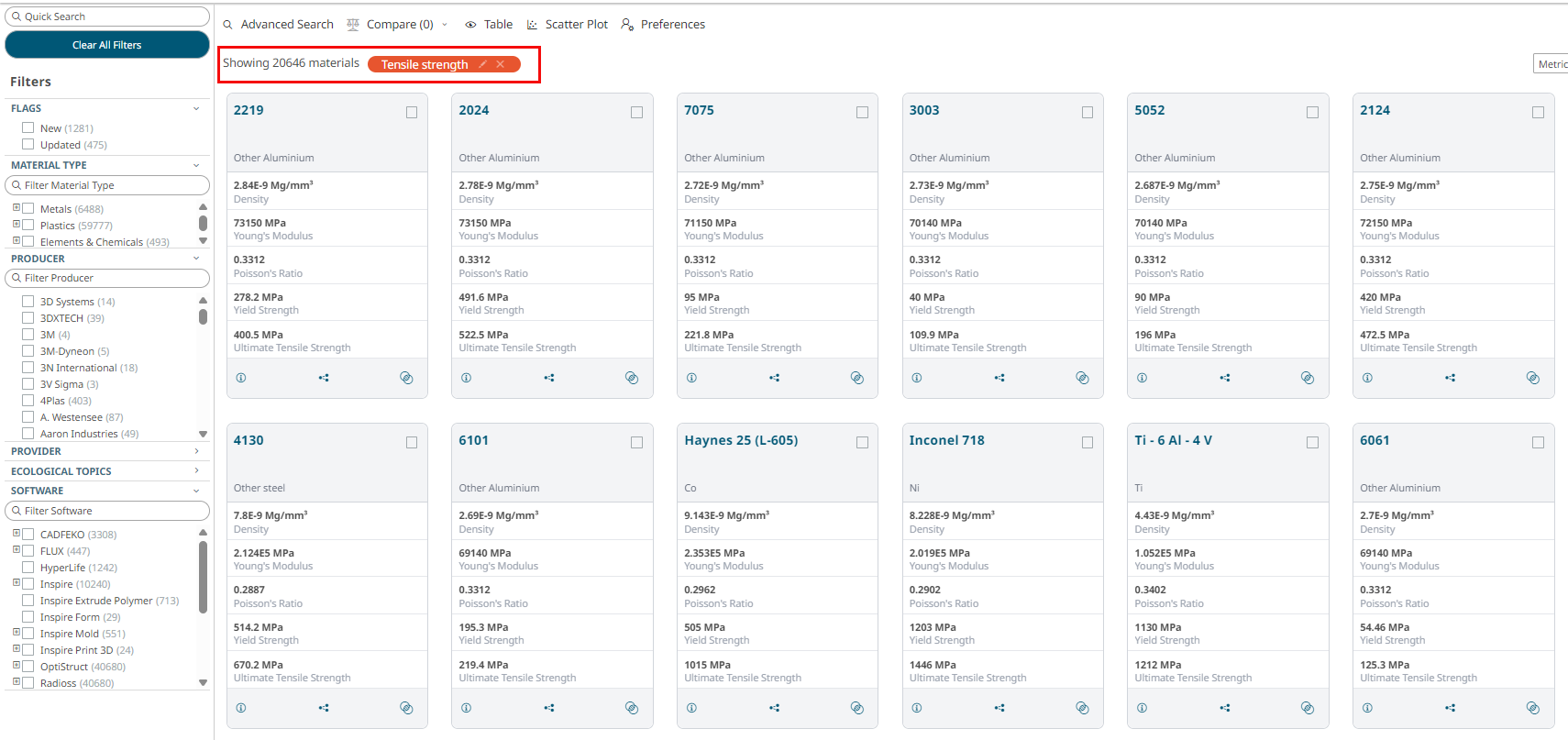

Figure 9. Search with Material Property
You can refine your search result by specifying specific property values for a material property.
1. Click the Edit icon next to the search term.
2. Enter the required material property range and press Enter.

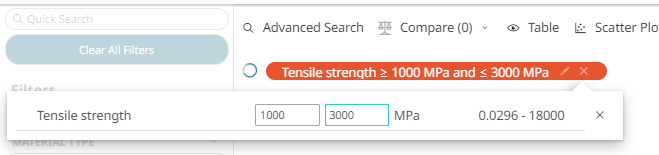

  Figure 10. Edit Search Term Values
Search results refresh to reflect the updated input.

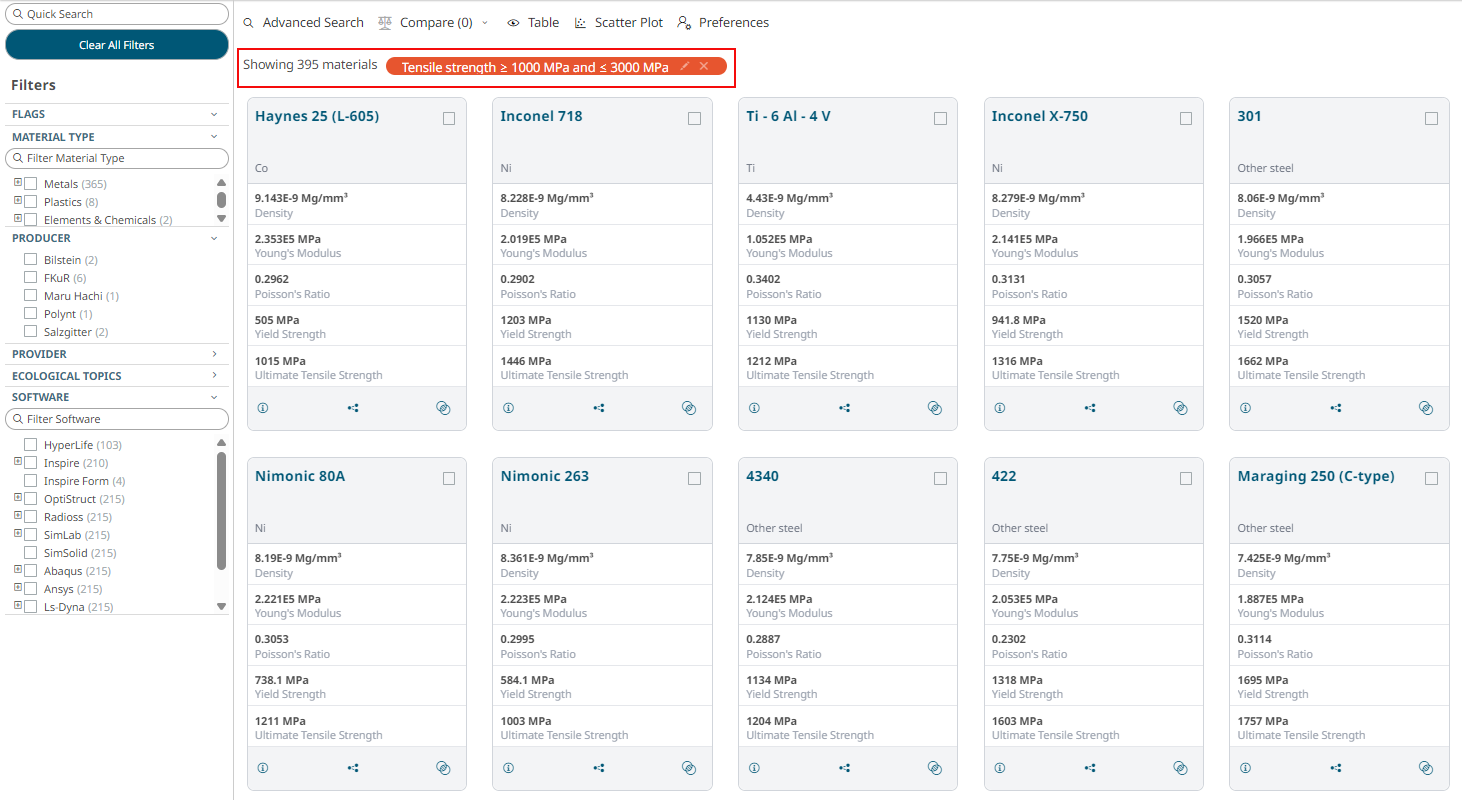

Figure 11. Updated Search Results based on Property Values
