Schematic

Several Disk Brake schematic figures and calculations are displayed below:

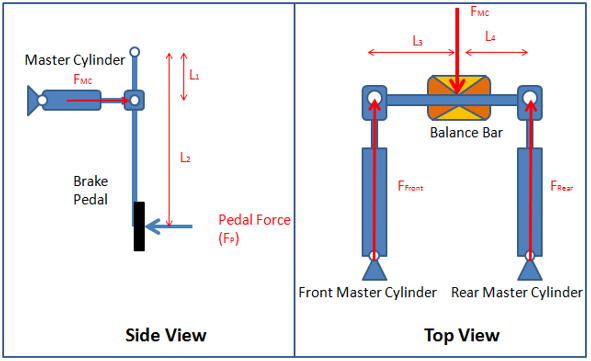

Pedal force (F_P) =
Pedal ratio (PR) =
Force at master cylinder mount point (F_MC) = PR * F_P
Brake bias (BB) =
Force in front master cylinder, F_Front= BB * F_MC

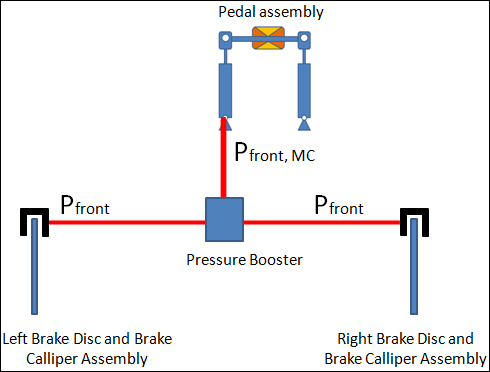

Pressure in front brake line, P_Front = K_{Brake boost} * F_Front/Area_{MC_front}
Force in rear master cylinder, F_Rear = (1 - BB) * F_MC
Pressure in rear brake line, P_Rear = K_{Brake boost} * F_Rear/Area_{MC_rear}

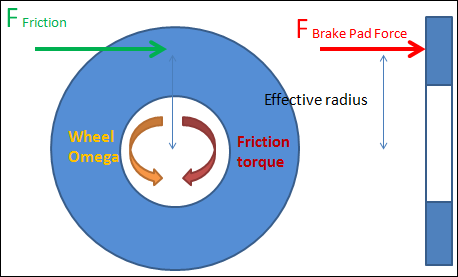

Normal force by brake pad on front brake Disk:

is friction coefficient between brake Disk and brake pad
is angular velocity of the wheel

Figure 4. Friction Force versus Wheel Angular Speed
Friction torque on the brake Disk =
