Customize Rows on Material Tiles

Add, remove, or reorder material properties displayed on tiles for all materials or specific material types.

The first five properties in the list, that are 'available' for that particular material are displayed on the tile.

  1. On the Admin Dashboard, open Catalog Edit.
  2. Navigate to Application Catalog > Tiles > Default > Layout > Layout > Table.
    Note: To select specific material group, navigate to Application Catalog > Tiles > specific Material Type for example: Metal, Plastic, or Fibers.
    The Table section displays a list of properties currently shown on the material Tile view (e.g., Price, Density, Yield Strength, etc.).
  3. To add a property, drag and drop it from the Base Catalog to the Table section of the Application Catalog. The first five available properties will display on the Tiles view.

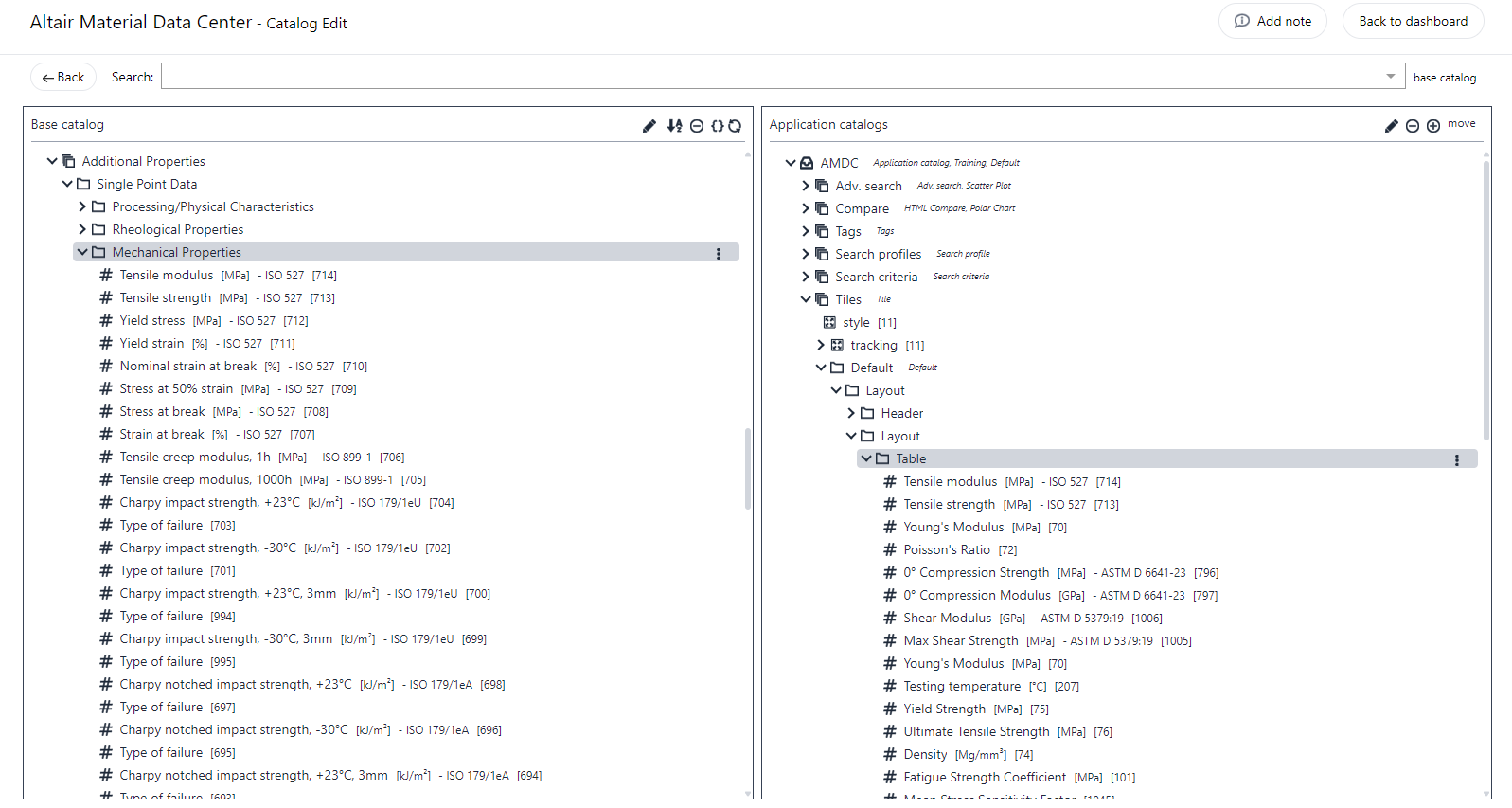

    Figure 1. Select Property


    The tile view is updated with the available material properties.

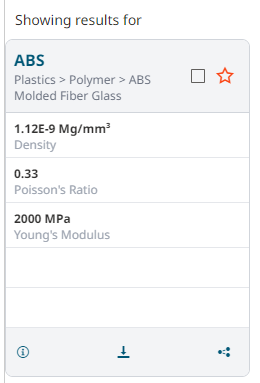

    Figure 2. Customized Tile View


  4. Similarly, for adding a new property for a desired material type.
    1. Click Application CatalogTiles< required material type>LayoutLayoutTable.
      In the following example, I chose material type as Metal.

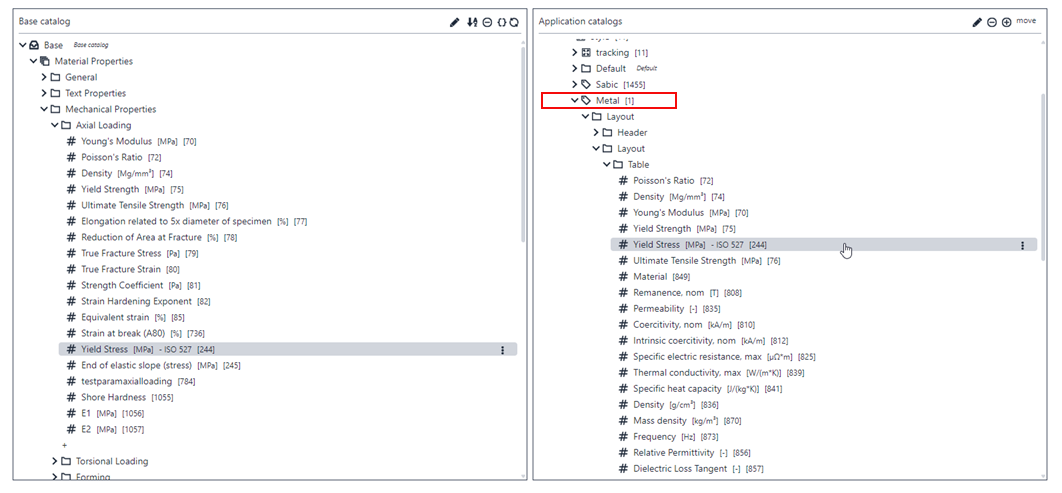

      Figure 3. Customize Material Type Properties


  5. To reorder the existing properties, select the property and then drag and drop it in the order that you wish to rearrange.
  6. To remove a property, click next to it and select Delete Item.

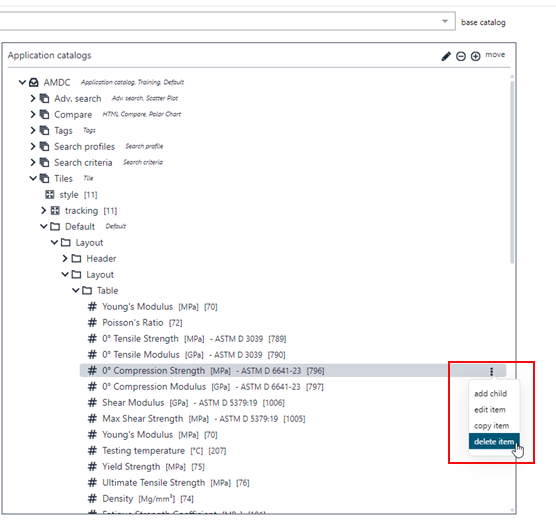

    Figure 4. Delete Property Item


    The selected property is removed for the material type.
