Add a New Material Plot
Add a new multi-point material property (e.g., Stress-Strain plot) to the database.
-
Click to view all existing plots.
Figure 1. Add a New Material Plot
- Click the add item (+) icon at the bottom of the list.
-
In the Type drop down, choose
Diagram.

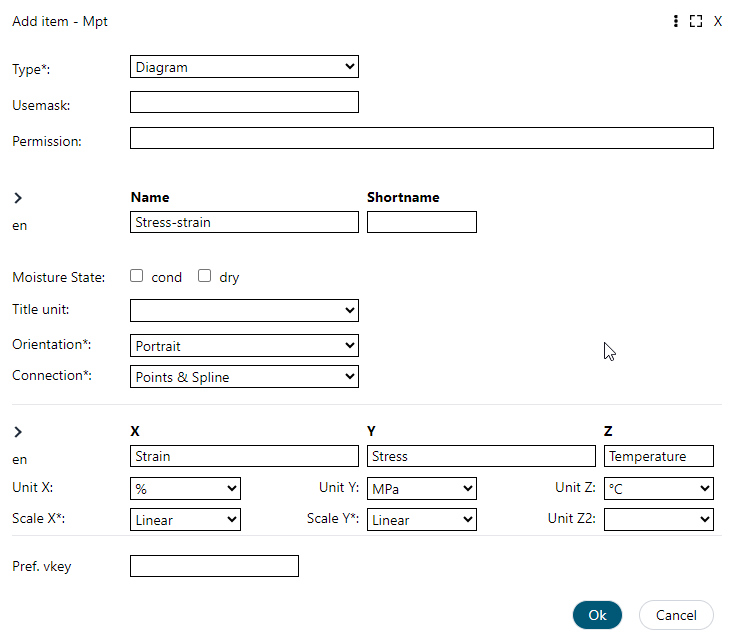

Figure 2. Add a New Plot Item
- Enter the plot name, select appropriate units and scales for the X and Y axes, then click OK to save.
