Post

New Features

Random Response Tool: The Random Response tool has been added to perform random response analysis using an existing FRF file. The required inputs for the Random Response tool are a result file (OptiStruct .op2/.h3d and Nastran .op2 file types are currently supported) and a PSD curve in CSV format.

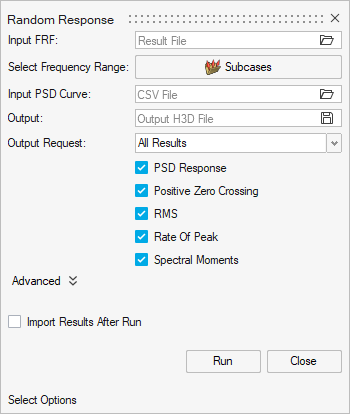

Figure 1.

Figure 2.

Enhancements

Results Query Support: Results query support has been added for selection using the by Parts and by Properties options.
Results Query XML Control File Support: Results query XML control file support has been added for selection using the by ID Advanced option where ID ranges can be defined as IDstart:IDend:IDstep.

Known Issues

If the Random Response tool is rerun without closing, the output file will be overwritten. To avoid this, rename the existing file before rerunning.
